Think of a stretch hood as a perfectly fitted, protective glove for your entire pallet load. It's an advanced way to package and secure your goods using a highly elastic, gusseted tube of film that provides superior five-sided protection. This method offers a level of stability and weatherproofing that older, more traditional methods just can't match.
Unpacking Stretch Hood Technology
A stretch hood system is all about automating how you secure palletized goods. It works by applying a single, continuous layer of film over the entire load. This is completely different from stretch wrap, which just winds film around a pallet. Instead, this technology stretches a tube of film wide open and then pulls it down over the whole thing.
Once released, the film’s natural elasticity kicks in, causing it to shrink back tightly around the load. This creates powerful containment forces both vertically and horizontally. It’s that dual-action tension that really makes the technology shine. Imagine pulling a fitted sheet over a mattress—the elastic corners grip everything firmly, holding it all securely in place from top to bottom. This process unitizes the load, keeps it stable, and completely seals it from rain, dust, and UV rays.
The Mechanical Process Simplified
At its core, a stretch hooder machine performs a sequence of precise, automated actions. While the specific equipment can vary, the basic steps are always the same, creating a reliable and repeatable packaging cycle that can seriously boost your throughput. In fact, high-speed systems can easily process over 100 pallets per hour, making them a perfect fit for high-volume manufacturing and distribution centers.

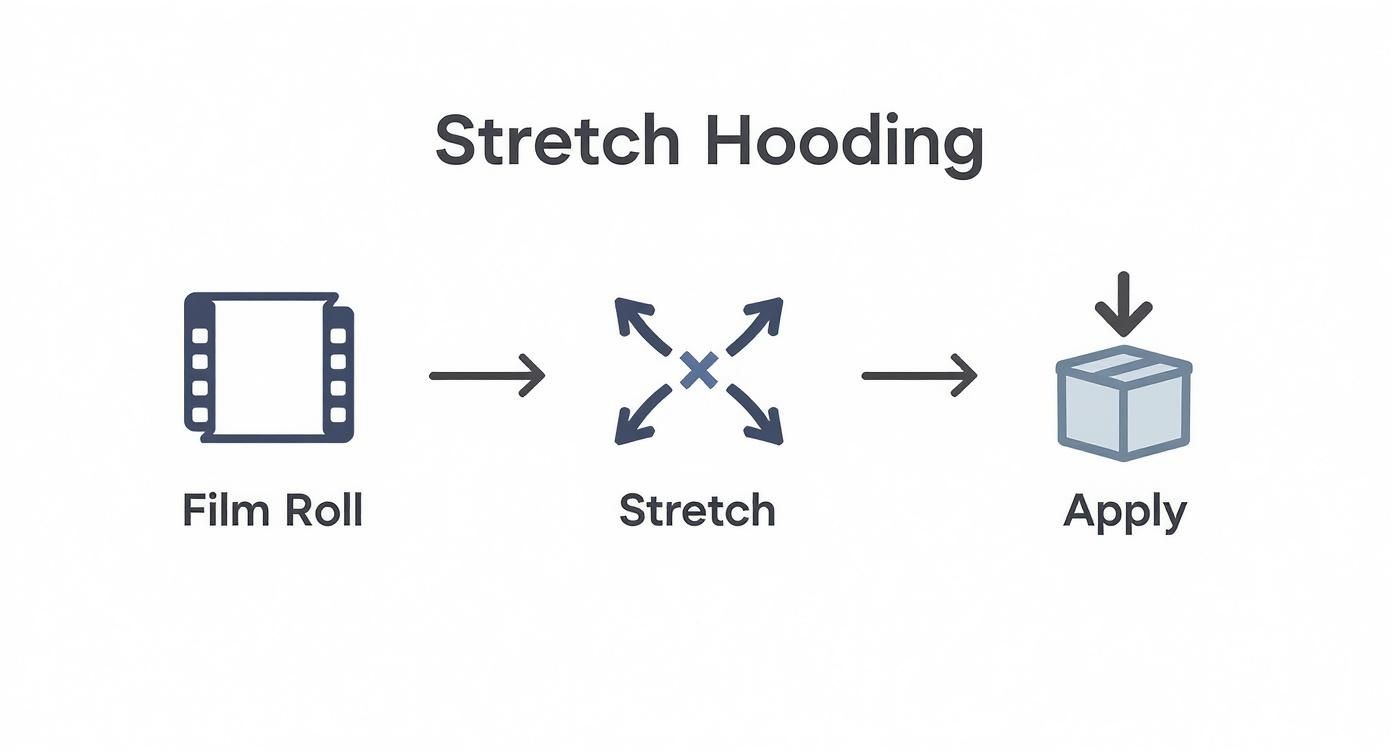

This diagram gives you a simple visual of how a stretch hood gets applied to a pallet load.
As you can see, the process flows smoothly from feeding the film, to mechanically stretching it, and finally applying it over the load in one clean motion.
The real advantage here is in the simplicity and efficiency. You're getting rid of separate top sheets and multiple wraps, which means you use less material and slash your cycle time. That has a direct, positive impact on both your operational costs and your sustainability goals.
To really get a feel for where stretch hood technology fits, it helps to put it side-by-side with other common pallet wrapping techniques. Each one has its place, but they differ quite a bit in their application, performance, and overall cost.
Comparing Pallet Wrapping Methods
Let's break down the key differences. This table gives you a clear, at-a-glance comparison of stretch hood, traditional stretch wrap, and shrink wrap. It’s a great way to see where each method excels and why you might choose one over the others for your specific needs.
| Feature | Stretch Hood | Stretch Wrap | Shrink Wrap |
|---|---|---|---|
| Load Stability | Excellent (Vertical & Horizontal) | Good (Horizontal Only) | Good |
| Weather Protection | Excellent (5-Sided Waterproof) | Poor (Top is exposed) | Excellent |
| Speed | Very High (Up to 150+ pallets/hr) | Moderate to High | Low to Moderate |
| Film Consumption | Low | Moderate | High |
| Energy Usage | Low (No Heat Required) | Low | High (Requires Heat Tunnel) |
| Brand Presentation | Excellent (High Clarity/Printable) | Fair | Good |
Looking at the comparison, it’s clear that stretch hood brings a unique combination of speed, five-sided protection, and material efficiency to the table. While stretch wrap is a workhorse for basic horizontal containment and shrink wrap offers great protection, neither can match the all-around performance of a modern stretch hood system.
The Five Core Benefits of Stretch Hood Systems
Making the switch to a stretch hood system isn't just an equipment upgrade; it's a strategic move that pays dividends all the way down the supply chain. This technology does more than just cover a pallet—it solves real-world operational problems, from keeping products intact to making your brand look its best.
There’s a reason for the buzz. The global market for stretch hood films is on track to grow from USD 1.41 billion in 2025 to USD 2.05 billion by 2034. That kind of growth tells you something: businesses are seeing tangible benefits and making the investment. You can explore more details on the stretch hooder packaging film market to see the full picture.
So, what’s driving this shift? Let's break down the five core benefits that make this technology a game-changer for modern logistics.
1. Unmatched Load Stability and Security
At its heart, any pallet wrapping method needs to keep the load from falling apart. But stretch hooding takes stability to a whole new level. While traditional wrapping just cinches a load horizontally, a stretch hood applies biaxial tension.
Think of it like pulling a fitted sheet over a mattress. The film is stretched both vertically and horizontally before it’s released over the load. This creates a powerful, consistent clamping force from every direction, locking the products together and securing them tightly to the pallet. That dual-action grip stops layers from shifting, twisting, or collapsing, even during the roughest parts of transit.
This is a lifesaver for challenging loads, including:
- Unstable stacks like bags of cement or animal feed that love to shift.
- Lightweight products that could be crushed by the focused pressure of standard stretch wrap.
- Heavy items like bricks or pavers that need serious holding force to stay put.
2. Superior Five-Sided Product Protection
A stretch hood creates a seamless, five-sided cocoon around your products, making them waterproof and dustproof. Because the film is a single tube pulled down over the top, there are no gaps, seams, or overlaps where dirt and moisture can sneak in.
This is a huge deal for goods stored outside or shipped on flatbed trucks. It completely eliminates the need for extra top sheets or pallet caps, simplifying the packaging process while offering far superior protection from the elements.
By forming a complete seal over the top and sides, stretch hood technology guarantees your products arrive looking just as good as when they left—clean, dry, and ready for your customer. This can slash damage claims tied to weather exposure.
3. Greater Operational Efficiency and Throughput
In any busy production or distribution center, speed is everything. This is where automated stretch hood systems really shine. They're built for high throughput and can wrap over 150 pallets per hour. That’s a massive leap from most automated stretch wrappers and lightyears ahead of doing it by hand.
The efficiency comes from a fully automated cycle. The machine measures the load, cuts the right amount of film, and applies the hood in one smooth, continuous motion. Less manual work not only accelerates the line but also frees up your team to handle other critical tasks, helping to eliminate bottlenecks and boost overall productivity.
4. Enhanced Brand Presentation
Let's face it, your pallet is often the first physical impression a customer gets of your brand. A stretch hood can turn a boring, functional pallet into a clean, professional-looking mobile billboard. The high-clarity films give a crystal-clear view of the product inside, creating a sharp, retail-ready look that builds trust.
Better yet, that smooth, tight surface is the perfect canvas for high-quality printing. You can feature your logo, brand messaging, or handling instructions right on the film. Suddenly, every pallet that leaves your facility is also a marketing tool, reinforcing your brand identity across the entire journey.
5. Measurable Sustainability Gains
With environmental responsibility becoming a bigger priority, every business is looking for ways to reduce its footprint. Stretch hood systems make a real impact here by optimizing film usage. Because the biaxial stretching process makes the film stronger, you can use thinner gauges than you would with traditional wrapping.
This means you get better load containment while using up to 30% less plastic. Plus, the process is heat-free, so it uses significantly less energy than shrink hooding, which relies on a power-hungry heat tunnel. Less material and less energy mean a smaller carbon footprint and, often, significant cost savings.
Selecting The Right Stretch Hood Film
Think of choosing your stretch hood film like picking tires for a race car. You can have the most powerful engine on the track, but without the right rubber meeting the road, you're not going anywhere fast. The same is true here. All the performance—the elasticity, tear resistance, and holding force—comes directly from the film itself. Getting this choice right is absolutely critical for stable, protected loads.
The magic is in the polymer blend. These aren't just simple plastic sheets; they're highly engineered materials, usually based on polyethylene (PE), designed to stretch and snap back with incredible force. The most common recipes you'll see are blends of Linear Low-Density Polyethylene (LLDPE) and Low-Density Polyethylene (LDPE).
LLDPE is the workhorse, bringing exceptional strength and puncture resistance to the table, making it perfect for loads with sharp or irregular edges. LDPE, on the other hand, is all about presentation, offering fantastic clarity and a softer feel. By tweaking the ratios of these polymers, we can dial in the film's performance for very specific jobs.
Key Film Properties To Consider
Beyond the basic ingredients, a few key properties really define how a film will behave on the line and in transit. Understanding these will help you match the film perfectly to your product, avoiding waste and preventing damage.
When you start looking at options, you'll see a few main players in the polymer world: polyethylene (PE) in its various forms (LLDPE, LDPE), polypropylene (PP), and polyvinyl chloride (PVC). Interestingly, films up to 100 microns thick make up a huge 55.3% share of the market, showing a clear shift toward thinner, more efficient materials. You can see more data on these specifications in the latest USA stretch hood films market trends.
For now, let's focus on three of the most important factors you'll need to evaluate:
- Film Thickness (Microns): This is the film's gauge. Thicker films generally mean more puncture resistance and holding force, but they also cost more. The real goal is to find the sweet spot—the thinnest possible film that still secures your load without compromise.
- Gusseting: The film arrives as a continuous, folded tube. Those folds, or gussets, are what allow the hood to form perfectly over the corners of your pallet. The right gusset design ensures a snug, complete fit with no loose spots.
- Co-extrusion (Multi-Layer Films): Modern films are rarely just a single layer of plastic. Most are co-extruded with three, five, or even more layers, with each one engineered for a specific task.
A multi-layer film is like a high-tech sandwich. One layer might be for UV protection, another for puncture resistance, and an outer layer for crystal-clear branding. This layered approach delivers performance that a single-layer film simply can't touch.
A Quick Look at Common Film Materials
To make sense of the options, it helps to see how the different materials stack up. Each polymer brings a unique set of properties to the table, making it better suited for certain tasks.
| Stretch Hood Film Material Properties | ||
|---|---|---|
| Material Type | Key Properties | Best For Applications |
| LLDPE (Linear Low-Density Polyethylene) | High tensile strength, excellent puncture resistance, good elasticity. | Irregularly shaped loads, heavy products, building materials, items with sharp corners. |
| LDPE (Low-Density Polyethylene) | High clarity, soft feel, good printability, lower strength than LLDPE. | Consumer goods, food & beverage, applications where visual appeal and barcode scanning are key. |
| Metallocene PE | Superior toughness, excellent holding force, allows for thinner gauges. | Demanding applications requiring high load stability with less material usage. |
| EVA (Ethylene-vinyl acetate) | Softer, more flexible, and has better cling properties at low temperatures. | Frozen foods, cold-storage environments, or where extra flexibility is needed. |
Ultimately, the best film is often a blend of these materials, carefully formulated to give you the exact balance of strength, clarity, and protection your product demands.
Matching Film To Your Application
The right film for a pallet of concrete blocks is going to be wildly different from the one needed for bottled water. The final step is linking these film properties directly to what you're shipping. If you want to get even deeper into the technicals, check out our comprehensive guide on stretch hood film.
Here’s how this plays out in the real world:
- For Sharp-Edged Building Materials: If you're unitizing bricks, tiles, or bagged cement, your number one enemy is punctures. You'll want a thicker, LLDPE-rich multi-layer film that can stand up to sharp corners without tearing.
- For Retail-Bound Consumer Goods: When your pallets are headed to a store, clarity and printability are king. A film with more LDPE will provide that crystal-clear finish, ensuring barcodes scan effortlessly and your branding looks sharp.
- For Outdoor Storage: For products like lumber, fertilizer, or anything that will sit outside, UV protection is a must. Look for a film with a dedicated UV inhibitor layer that can fend off sun damage for six, twelve, or even more months.
- For Sensitive Electronics: To keep components safe from static discharge, you need an anti-static film. These films have special additives that dissipate static electricity, protecting your valuable and sensitive goods from damage.
Understanding Stretch Hood Machinery
The incredible performance of stretch hood film is only one side of the coin. To really make it work, you need the right machinery—and that’s where the stretch hooder comes in. This isn’t just some simple wrapper; it’s a sophisticated piece of equipment engineered for speed, precision, and absolute reliability.
Think of it as a highly focused robotic system. Its entire job is to grab a continuous tube of film, measure out the exact amount needed for a pallet, stretch it wide open, and then glide it down over the load in one fluid motion. This guarantees a perfect, consistent fit every single time—something you just can't get with manual wrapping or less advanced methods.
Anatomy of a Stretch Hooder
While every manufacturer has their own design tweaks, all stretch hood machines are built around a few core components that work in perfect harmony. Each part has a critical role in turning a simple roll of film into a tough, five-sided protective cocoon for your products.
Let's look at the key players:
- Film Roll Carriage: This is mission control. The carriage holds one or more giant rolls of gusseted film, feeding it smoothly into the system on demand.
- Sealing and Cutting Unit: Once the machine’s sensors read the pallet’s height, this unit pulls down the right length of film. It then creates a tough, waterproof seal across the top and cuts the section free from the main roll, creating the "hood."
- Stretching and Application Frame: Here's where the magic happens. A set of grippers—often called "fingers" or a frame—grabs the open end of the newly made hood. It then stretches the film both lengthwise and crosswise, expanding it just enough to easily clear the pallet.
- Application Mechanism: The frame then travels down over the pallet, releasing the film as it goes. Thanks to the film’s powerful elastic memory, it immediately snaps back and clamps down around the load, creating intense horizontal and vertical force that holds everything tight.
The real genius here is that the entire application process is 100% heat-free. This not only slashes energy consumption compared to shrink hooding but makes the whole operation safer for your team and any temperature-sensitive goods on the pallet.
Semi-Automatic vs. Fully Automated Systems
Not everyone is moving 200 pallets per hour. The right stretch hooder for you really boils down to your output and how much you need the machine to integrate with your existing line.
A semi-automatic system is a fantastic starting point for facilities just getting into automated packaging. In this setup, an operator uses a forklift to position the pallet, then kicks off the wrapping cycle with a remote or a button. It automates the most important part—the hood application—to give you that perfect wrap every time, but at a more accessible price point.
On the flip side, fully automated systems are the workhorses built for high-volume, 24/7 operations. These machines plug directly into your conveyor lines, automatically feeding pallets in, wrapping them, and sending them on their way with zero human interaction. They are all about maximizing throughput and minimizing labor. To get a better sense of the different models and what they can do, you can explore this overview of the modern stretch hood machine.
Ultimately, the choice comes down to a few practical questions: How many pallets do you need to wrap per hour? How much do your load sizes vary? And how seamlessly does this machine need to talk to the rest of your production line?
Stretch Hood Applications Across Key Industries
The real test of any technology isn’t in a lab—it's how it performs in the messy, demanding real world. For stretch hoods, the combination of tough protection, quick operation, and rock-solid load stability makes it a workhorse across a ton of different industries.
Every sector has its own unique headaches, from battling the elements on a construction site to meeting strict hygiene rules for food products. This is where the adaptability of stretch hoods really shines. We’re not just talking about covering a pallet; we’re talking about preserving product value, showing off a brand, and making the entire supply chain run smoother.
Building Materials: A Fortress Against The Elements
The construction industry is a tough environment. You're dealing with heavy, abrasive, and oddly shaped products that spend a lot of time stored outside. Think about pallets of bagged cement, bricks, or roof shingles getting hammered by rain, snow, and sun. That exposure can ruin inventory and cost a fortune.
This is where the five-sided, waterproof seal of a stretch hood becomes a game-changer. It creates a seamless barrier that completely shields products from moisture and dirt, which means you can ditch those flimsy, unreliable top sheets. A quality stretch hood film also has high puncture resistance, so it can handle the sharp corners of bricks and pavers without tearing, keeping the load secure from the factory to the job site.
Challenge: Protecting bulky, heavy materials from weather damage during outdoor storage and transport.
Solution: A thick-gauge stretch hood provides a waterproof, tear-resistant cover that ensures products like bagged cement arrive dry and ready for use, drastically cutting down on waste and spoilage.
Food And Beverage: Hygiene And Stability, All In One
In the food and beverage world, hygiene is everything. Contamination from dust, pests, or moisture can spoil an entire shipment and trigger expensive recalls. At the same time, you have pallets stacked high with bottles, cans, and cartons that need to be perfectly stable to prevent them from shifting and breaking in transit.
A stretch hood tackles both problems at once. The complete, sealed coverage keeps contaminants out, helping producers nail those strict food safety standards. The strong, consistent holding force of the film also unitizes the entire pallet, locking even tall or wobbly loads of beverage containers firmly in place. Plus, the crystal-clear film makes barcode scanning and visual checks a breeze without ever having to break the protective seal.
It's no surprise that the food and beverage industry is the biggest user of this technology globally. Fueled by the growing demand for packaged foods, this segment makes up about 45% of the market. This is especially true in the Asia-Pacific region, which holds roughly 40-41% of the global market share. You can dive deeper into the data by reviewing the latest stretch hood films market analysis.
Chemicals And Pharmaceuticals: Security And Containment
For chemical and pharmaceutical companies, keeping products secure and contained is critical. Pallets are often loaded with high-value or hazardous materials that absolutely must be protected from tampering, contamination, and spills. A compromised load isn't just a financial hit—it can be a serious safety risk.
The stretch hood acts as an effective, tamper-evident seal. Since the hood is one continuous piece of film, any attempt to get inside is immediately obvious. This visual security is a huge deterrent to theft and unauthorized handling. The waterproof and dustproof seal also guarantees that sensitive chemical or pharmaceutical products maintain their purity all the way through the supply chain.
Home Appliances: Protecting That Showroom Finish
When you’re shipping big-ticket items like refrigerators, washing machines, or dishwashers, the biggest battle is against cosmetic damage. A single scratch, scuff, or dent can make a brand-new appliance unsellable, leading to costly returns and unhappy customers.
Stretch hood technology offers a solution that's both gentle and firm. The elastic film conforms perfectly to the shape of the appliance, holding it securely to the pallet without the kind of concentrated pressure from straps that can cause dents.
For this industry, the key benefits are clear:
- Scratch Protection: The soft, smooth film acts like a protective skin, guarding surfaces against abrasions.
- Dust and Dirt Shield: It keeps appliances factory-clean and ready for the showroom floor.
- Brand Visibility: High-clarity film lets the product's design and branding shine through, boosting its retail appeal.
This method ensures bulky, high-value goods arrive looking as perfect as they did when they left the factory, protecting both the product and the brand's reputation for quality.
Getting the Most Out of Your Machine: Best Practices for Peak Performance
Getting the best return on your stretch hood investment really comes down to disciplined, consistent habits. Yes, the machinery is highly automated, but hitting peak performance requires a sharp eye for detail before, during, and after every single wrap.
Nailing these best practices means you'll see maximum load stability, less film waste, and a much safer work environment for your team.
It all begins long before a pallet ever sees the machine. A poorly built load is a guaranteed failure waiting to happen, no matter how sophisticated your equipment is.
Build a Stable Foundation
The absolute first rule of successful stretch hooding is to start with a solid, well-constructed pallet load. The film is there to secure an already stable load; it can't magically fix a wobbly, poorly stacked one.
Here’s what to focus on before wrapping:
- Use Quality Pallets: Always check for broken boards or protruding nails. A single snag can tear the film and compromise the entire load.
- Square Up the Load: Make sure boxes, bags, or whatever you're wrapping are aligned squarely on the pallet. You want to avoid significant overhang. An even, column-stacked load gives the hood the best possible surface to grip.
- Eliminate Voids: Gaps inside the load create weak points that can shift in transit. Pack products as tightly as possible to create a solid, interlocked block.
Think of your pallet load as the skeleton and the stretch hood film as the muscle. The muscle can only be as strong as the skeleton it supports. A wobbly, uneven skeleton is going to compromise the whole structure every time.
Fine-Tuning Your Machine's Calibration
With a solid load ready to go, the next step is dialing in your machine settings. Proper calibration is a delicate balancing act. You need just enough tension to lock everything down, but not so much that you over-stretch the film or, worse, crush the product.
Keep a close eye on these critical settings:
- Stretching Ratios: This isn't a guessing game. Work directly with your film supplier to find the optimal stretch percentage for your specific film and application. This ensures you get the most out of every roll without risking tears.
- Film Tension: You have to adjust the containment force based on the product. A pallet of lightweight cardboard boxes needs a much gentler touch than a pallet of concrete bags.
- Hood Application Speed: Watch how the application frame descends. It should be a smooth, controlled movement to prevent snags and ensure the film is applied evenly on all sides.
Finally, routine machinery maintenance is completely non-negotiable if you want consistent results. This means regularly cleaning sensors, checking for worn parts, and lubricating moving components exactly as the manufacturer recommends. Being proactive here prevents the vast majority of operational headaches.
For a closer look at the application process itself, our guide on stretch hood wrapping is a great resource. And, of course, always put safety first. Make sure all guards are in place and that your team is fully trained on how to operate the equipment properly.
A Few Common Questions
When you're digging into pallet wrapping technology, a few key questions always seem to pop up. Let's tackle some of the most common ones about stretch hood systems to help you get a clearer picture of whether it’s the right move for your operation.
Is Stretch Hood Really More Expensive Than Stretch Wrap?
Looking purely at the cost per roll, yes, stretch hood film can seem pricier upfront. But that’s a dangerously incomplete picture. The real story is in the total cost of ownership, and that’s where stretch hood almost always comes out ahead.
The technology is just that much more efficient. You’ll typically slash your film consumption by 20-40% for every single pallet compared to old-school stretch wrapping. When you add up the savings from faster wrapping speeds (meaning lower labor costs) and a massive drop in product damage claims, the financial case becomes crystal clear. You have to look beyond the film roll to see the true savings.
Can You Recycle Stretch Hood Film?
Yes, absolutely. The overwhelming majority of stretch hood films are made from Low-Density Polyethylene (LDPE), which is a Type 4 plastic. This makes it a straightforward addition to most commercial recycling streams.
Since it's a single-material film, it's far easier for recycling facilities to process than complex, multi-layered packaging. This is a huge plus for any company serious about its sustainability goals and looking to keep waste out of landfills.
Just How Fast Can a Stretch Hood Machine Run?
These machines are built for speed. Modern automated stretch hooders are true workhorses, designed for high-volume facilities where every second counts. They can easily process well over 150 pallets per hour, and some of the top-tier models even push past 200.
That kind of throughput gives a facility a major leg up over conventional wrapping methods. It’s what makes stretch hood the go-to solution for busy manufacturing plants and massive distribution centers that simply can't afford packaging bottlenecks. You get consistent, reliable performance, shift after shift.
