Picture giving your pallet a perfectly tailored, durable, and waterproof jacket in one quick motion. That’s the big idea behind stretch hood pallet wrapping. It's a slick, automated packaging method that uses a single, continuous tube of highly elastic film to get the job done. The machine stretches this film like a giant rubber band and pulls it down over a palletized load, creating a snug, secure fit without a bit of heat.
Understanding the Stretch Hood Advantage
Stretch hood wrapping is a modern answer to the classic headaches of older methods like stretch wrap or shrink wrap. It’s less like wrapping a present with paper and tape and more like slipping a custom-fitted, protective cover over your products. The whole process is a single, swift action that delivers complete, five-sided protection—covering the top and all four sides—in just a few seconds.
The magic is in the film's "memory." The plastic film is engineered with special resins that let it stretch way out without breaking. But the whole time, it's trying to snap back to its original, smaller size. When the machine releases it over the pallet, this elastic recovery creates a powerful, uniform force that holds everything together beautifully.
Key Characteristics of This Method
The whole process is highly automated and incredibly efficient, which brings a few standout benefits you just don't get with older, more hands-on techniques.
- Heat-Free Application: Unlike shrink wrapping, there are no heat tunnels involved. This immediately gets rid of fire risks, can cut energy consumption by up to 60%, and makes it perfectly safe for things that can't take the heat, like pharmaceuticals or frozen foods.
- Five-Sided Protection: The hood automatically covers the top of the pallet, shielding your goods from rain, dust, and UV rays (if you use specialized film). This is a built-in feature, whereas traditional stretch wrapping means someone has to add a separate top sheet.
- Superior Load Stability: The film creates both vertical and horizontal tension, leading to incredible load integrity. This stability is absolutely critical for stopping products from shifting during transit, especially if you're dealing with wobbly or oddly shaped loads.
Simply put, stretch hood technology gives you the tight load security of stretch wrap plus the weather protection of shrink wrap. But it does it all while using less material and less energy—a huge leap forward for any end-of-line packaging operation.
Comparing Wrapping Technologies
To really see where stretch hood shines, it’s helpful to put it side-by-side with the more traditional methods. Stretch wrapping is all about winding layers of film around a pallet, and shrink wrapping uses a big bag and a heat tunnel to shrink it tight. Stretch hooding, however, offers a unique blend of benefits that cherry-picks the best of both worlds.
Here's a quick look at how these three methods stack up against each other.
Comparing Stretch Hood vs Traditional Wrapping Methods
| Feature | Stretch Hood Wrapping | Stretch Wrap | Shrink Wrap |
|---|---|---|---|
| Load Protection | Five-sided (top and sides) | Four-sided (requires top sheet) | Five-sided |
| Energy Use | Low (no heat required) | Low | High (requires heat tunnel) |
| Film Consumption | Low | Medium to High | High |
| Speed | Very High (up to 100+ pallets/hr) | Varies (low to medium) | Low to Medium |
| Visuals | High clarity, excellent for branding | Good clarity, can obscure graphics | Can be cloudy after heating |
As you can see, the combination of speed, protection, and efficiency makes a compelling case. Stretch hood wrapping isn't just another option; for many applications, it’s a clear upgrade that solves multiple problems at once.
How Stretch Hood Machinery Works
A stretch hooder isn't just a wrapping machine; it’s more like an automated tailor for your pallets. The whole process is a smooth, robotic sequence that dresses a pallet in a protective, five-sided cover in just seconds. It’s all about speed, consistency, and taking human error out of the equation.
The operation kicks off when a continuous, gusseted tube of film is fed from a giant roll. Think of this film like a folded paper bag—it lies flat on the roll but can expand to a much larger size. As a pallet approaches, advanced sensors instantly measure its height to calculate the exact length of film needed. No guesswork, just a perfect fit every time.
Once the length is determined, the machine cuts the film and seals one end shut. This creates a big, sealed "hood." That top seal is absolutely critical—it’s what makes the entire cover waterproof. Modern machines nail this step with incredible accuracy, ensuring a strong, reliable weld on every single pallet.
The Stretching and Application Process
With the hood formed, the real magic begins. A set of four robotic gripper arms descends and grabs the open end of the film tube. These arms are the heart of the machine. They move outward and downward, stretching the film both horizontally and vertically.
This biaxial stretching is the secret behind stretch hood pallet wrapping's incredible holding force. The film is stretched almost to its elastic limit, loading it with potential energy. When the machine releases the film, that energy snaps back, creating a powerful, uniform clamping force that grips the entire load.
The machine’s control system manages this stretching with surgical precision, dialing the force up or down based on the pallet's dimensions and how stable it needs to be. This means delicate products won’t get crushed, while heavy, wobbly loads get the maximum squeeze needed for a safe journey. You can find more detailed breakdowns of how different components work together in various automatic stretch hood machines.

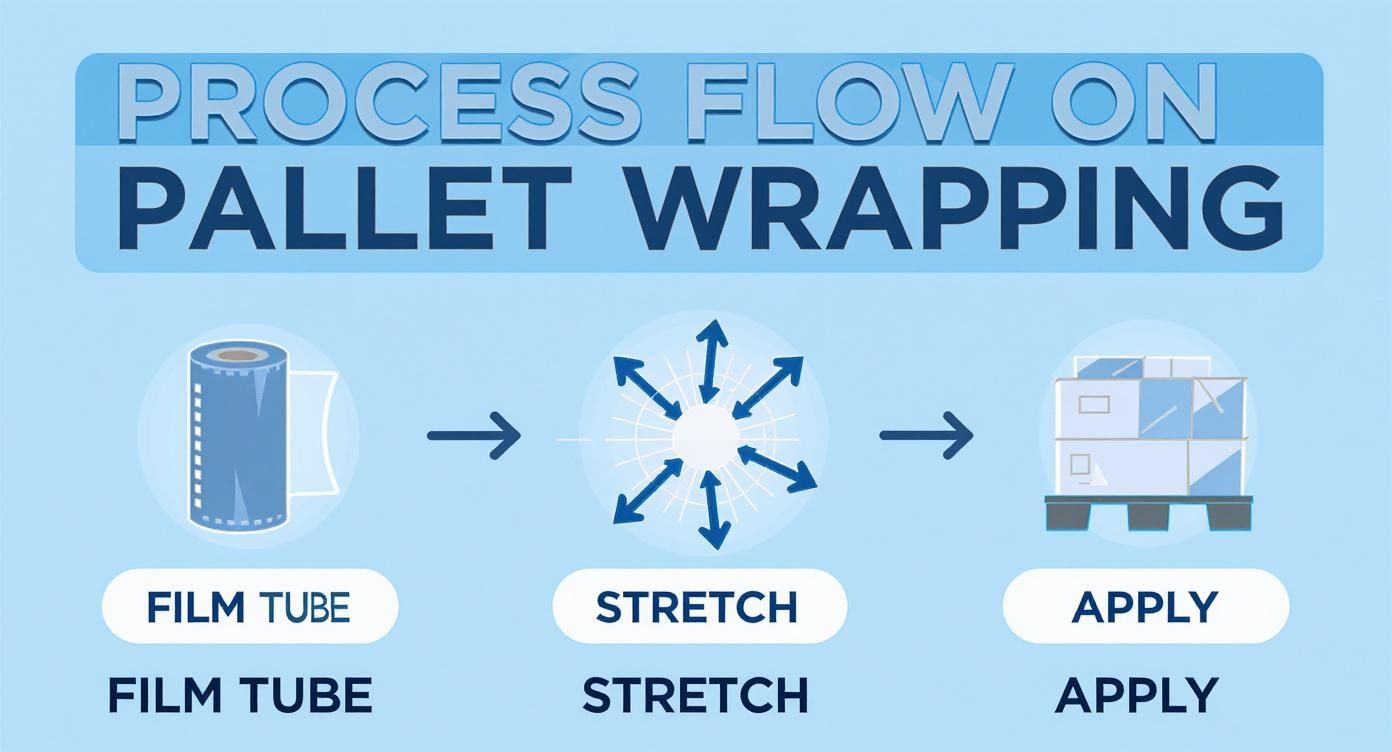

This diagram shows just how simple and effective the three-step sequence is, from creating the film tube to pulling it down over the pallet.
The entire workflow is streamlined for pure efficiency, with every move optimized for speed and precise material handling.
Finalizing the Secure Wrap
Once the film is stretched into a taut hood, the gripper arms smoothly lower it over the palletized goods. As the arms move down, they actually travel below the bottom of the pallet before letting go. The moment they release, the film’s elastic memory kicks in, and it instantly shrinks back to hug the load's every contour.
Crucially, the film snaps underneath the corners of the pallet, effectively locking the load in place. This "under-wrap" is a game-changer for load stability, preventing products from sliding or shifting around during the chaos of shipping and handling. The whole cycle—from feeding the film to the final application—is often done in under a minute, with some systems easily handling over 100 pallets per hour.
This high level of automation provides some serious advantages:
- Perfectly Repeatable Results: Every single pallet gets the exact same high-quality wrap. No more inconsistencies you get with manual wrapping.
- Increased Throughput: The speed is a massive boost to any end-of-line packaging operation, easily keeping up with high-volume production.
- Reduced Labor: Your operators are only needed to load new film rolls, freeing them up to focus on more important tasks.
At the end of the day, a stretch hooder is engineered to turn a vital packaging step into a reliable, efficient, and hands-off process that delivers unbeatable protection and load security.
Picking the Right Stretch Hood Film
The stretch hood machine provides the muscle, but the film itself is the real star of the show. Choosing the right film is like picking the perfect set of tires for a race car—it dictates how the entire system performs when things get tough. Not all films are the same, and the right choice is crucial for keeping your loads stable and protected.
The science behind stretch hood pallet wrapping film is surprisingly sophisticated. Most of what you see is a multi-layered polyethylene (PE) structure, typically with three or five distinct layers fused together. Each layer has a specific job, combining different properties to create one seriously high-performance material.
This layered design allows manufacturers to fine-tune the film's characteristics. The outer layers might be engineered for extreme puncture resistance and a slick surface, while the inner core provides the powerful elasticity that locks the load in place. This is a world away from a simple, single-ply plastic sheet.
Key Film Properties to Look For
When you’re weighing your options, there are a few key performance metrics you need to pay attention to. These properties have a direct impact on how well your pallets are protected, from the moment they leave your facility to their final destination.
Here are the critical attributes to get familiar with:
- Elasticity (Memory): This is the film’s ability to snap back to its original size after being stretched. Great elastic memory is what creates that powerful, consistent grip that keeps loads from shifting.
- Tear and Puncture Resistance: Your film has to be tough enough to handle sharp corners, rough transport, and general abuse without failing. A quality film won’t give up, maintaining the integrity of the hood.
- Holding Force: This is the constant pressure the film applies to the load. You need enough force to secure everything tightly but not so much that it crushes your products. It's a delicate balance.
- Optical Clarity: If you need barcodes scanned or branding seen, crystal-clear film is a must. It allows for easy scanning right through the hood and keeps your logos looking sharp.
The goal is to find a film that provides the perfect equilibrium of strength and flexibility for your unique products. A film designed for heavy cement bags will have a different formula than one created for lightweight, crushable cartons. You can get a more in-depth look at film specifications by checking out our guide on stretch hood film.
Additives, Customizations, and Sustainable Choices
Beyond the core properties, modern films can be supercharged with specialized additives to meet specific needs. These are mixed right into the polymer during manufacturing to give the film extra capabilities. For example, UV inhibitors are a lifesaver for products stored outdoors, stopping sunlight from degrading the film and damaging the goods inside.
Similarly, anti-static additives are non-negotiable when wrapping sensitive electronics, as they prevent the static discharge that can fry delicate components. You can also get colored films for quick product identification or opaque films to keep high-value goods out of sight.
Sustainability has also become a massive driver of innovation in film technology. The market for stretch hood pallet wrapping is growing fast, partly because of new eco-friendly materials. Industry trends show the market valuation was estimated between $2.5 billion and $3 billion in 2025, with much of that growth fueled by the demand for greener solutions. You can dive deeper into these trends and market impacts on marketreportanalytics.com.
Today, it's possible to find high-performance films made with significant amounts of post-consumer recycled (PCR) content, helping to close the loop on plastic waste. These options let you secure your products perfectly while hitting your company’s environmental goals.
When you're looking at pallet wrapping, the goal is pretty straightforward: get your products from point A to point B safely, efficiently, and without breaking the bank. While traditional methods have been the go-to for years, stretch hood wrapping brings a whole new set of advantages to the table, directly tackling the weak spots of older techniques. It’s not just another way to wrap a pallet; it's a fundamentally smarter way to protect your goods and improve your bottom line.
The real magic is in how the force is applied. Unlike stretch wrap that just winds film around a pallet horizontally, a stretch hood applies both vertical and horizontal containment force at the same time. Think of it like pulling a fitted sheet over a mattress versus just tying a rope around it. The fitted sheet gives you that snug, uniform tension across every surface, holding everything exactly where it should be—that's the stretch hood principle in action.
This dual-axis tension creates incredible load stability, which is absolutely crucial for stopping products from shifting around in transit. If you're shipping heavy, unstable, or oddly shaped items, this is a total game-changer. It dramatically cuts down the risk of costly damage and customer returns.
Superior Protection and Brand Presentation
One of the first things you'll notice with a stretch hood system is the complete, five-sided protection it delivers in one quick, automated motion. The top of the hood is sealed, creating a built-in waterproof and dust-proof shield. This is perfect for any products that might end up stored outside or exposed to the elements.
Right away, you're eliminating the need for a separate top sheet that someone has to apply by hand, which saves you money on both materials and labor. Traditional stretch wrapping often leaves the top of the pallet wide open, creating a weak spot for water damage or contamination. To see a full breakdown of these differences, check out our article on shrink wrap vs stretch wrap.
But it's not just about protection. Stretch hood film gives your brand presentation a serious upgrade.
- High Optical Clarity: The film is crystal clear, so barcodes can be scanned right through it without anyone needing to tear the wrap.
- Printable Surface: The smooth, tight surface is the perfect canvas for high-resolution printing. Suddenly, every pallet leaving your facility is a moving billboard.
- Wrinkle-Free Finish: The uniform application results in a clean, professional look that just makes your products feel more valuable.
This blend of rock-solid protection and polished aesthetics means your products don't just arrive safely—they arrive looking their best, reinforcing your brand's quality all the way to the customer's door.
The Economic Case for Stretch Hood
Okay, the initial investment for a stretch hooder can be higher than a basic stretch wrapper, but the long-term savings really tell the story. The biggest win comes from using less film. Because the film is stretched before it’s applied, a stretch hood system uses way less material for every pallet—often 30-50% less than you'd use with traditional stretch wrapping.
That material reduction translates directly into lower operating costs and a much smaller environmental footprint. When you're wrapping thousands of pallets, those savings stack up fast, delivering a solid and often surprisingly quick return on your investment.
On top of that, the fully automated process drives huge efficiency gains. High-speed machines can wrap over 100 pallets per hour, a rate that manual or semi-automatic systems can't even touch. This speed cuts labor costs, gets rid of packaging bottlenecks, and guarantees a perfect, consistent wrap every single time.
The global logistics market is definitely paying attention. The stretch hood sector is set to grow significantly, driven by the demands of e-commerce and the need for more dependable packaging. This trend confirms what many in the industry already know: the technology delivers better load stability and protection while cutting down on waste. You can see more data on this market growth on marketreportanalytics.com. At the end of the day, moving to stretch hood technology is a strategic investment in your operational excellence and the integrity of your products.
Where Stretch Hood Shines: Key Industry Applications
The real test of any packaging technology isn't in a lab—it's how it performs in the real world. Stretch hood isn't a one-size-fits-all gimmick; its strength is its incredible adaptability across a huge range of demanding industries.
From rugged construction sites to sterile food production lines, this method delivers tangible benefits that solve very specific, often costly, logistical headaches. It's a direct answer to problems like weather damage, product contamination, unstable loads, and slow packaging lines.
Let's look at where this technology is making a real impact.
Securing Building Materials and Construction Goods
If you want to see durability in action, look at the construction industry. Products like bagged cement, bricks, and roofing shingles are constantly exposed to the elements, whether they're in a yard or on a job site. Traditional wrapping just doesn't cut it.
A stretch hood creates a complete, five-sided waterproof shell around the pallet. The sealed top and tight-fitting sides are a fortress against rain, snow, and UV rays (when using the right film). This means products arrive dry and ready to use, slashing losses from weather damage.
For businesses in this sector, the ability to store pallets outdoors without fear of product degradation is a massive operational advantage. It frees up valuable indoor warehouse space and provides supply chain flexibility that other wrapping methods simply cannot match.
Protecting Chemicals and Agricultural Products
In the chemical and agricultural sectors, product integrity is non-negotiable. Contamination can ruin an entire pallet of fertilizer, polymers, or specialty chemicals, leading to huge financial hits and potential safety issues. Stretch hood wrapping is the perfect defense.
The thick, puncture-resistant film acts as a formidable barrier against dust, moisture, and pests. More importantly, the secure, uniform hold prevents bags from shifting and splitting open during transit. This level of containment is absolutely critical for maintaining product purity and meeting strict handling regulations.
Safeguarding Home Appliances and Electronics
Wrapping big, awkward items like washing machines, refrigerators, or boxed TVs is a unique challenge. They're heavy, bulky, and easily damaged if they aren't secured perfectly. Stretch hood technology excels precisely where other methods fall short.
The machine’s ability to stretch the film perfectly over the entire load—regardless of its odd shape—creates a snug, stable package. This stops things from moving around and protects finished surfaces from scuffs and scratches. Plus, the high optical clarity of the film means barcodes can be scanned right through the wrap, no unpacking necessary.
Ensuring Stability in Food and Beverage
The food and beverage industry needs packaging that is both stable and hygienic. Pallets of bottled drinks, canned goods, or bagged ingredients can be incredibly heavy and notoriously unstable. The powerful vertical and horizontal holding force of a stretch hood locks these loads together, preventing dangerous and expensive collapses.
This sector is a huge driver of pallet wrap demand, making up about 32.3% of the market. The need for rock-solid moisture and contamination control is critical, especially with the long, complex supply chains common in e-commerce. To explore a wide range of modern packaging solutions from Packhope, you can see how these challenges are being met across different industries.
Alright, let's get that machine humming on your production floor. Moving from the idea of a stretch hood pallet wrapping system to the reality of a fully operational one is a journey, and it starts way before any equipment shows up. A successful rollout begins with a hard look at your current operation—less about the new tech and more about your real-world needs.
Think of it like getting a custom-tailored suit. You wouldn't just guess your size; you'd get meticulously measured. Same thing here. You need to size up your facility's available space, the actual speed of your production line, and the nitty-gritty details of the pallets you’re wrapping every day. This groundwork is what makes sure the new system slots right into your workflow instead of causing headaches and new bottlenecks.
Conducting an Initial Facility Assessment
First things first, you need to map out your operational landscape. This isn't just about finding a patch of empty floor space. It’s a complete review of your entire end-of-line packaging process, from start to finish. The goal is simple: gather cold, hard data that will drive every decision you make from here on out.
Here’s what you need to lock down:
- Throughput Requirements: How many pallets are you wrapping an hour? Per shift? Be honest about what you need today, but don't forget to look ahead. What does growth look like?
- Load Profiles: Get the specs on your typical loads. What are their dimensions, weights, and how stable are they to begin with? Are you wrapping uniform boxes all day, or is it a wild mix of shapes and sizes?
- Operating Environment: What's the climate like on your floor? Think about temperature extremes, dust, and moisture. A system destined for a cold storage facility has very different needs than one sitting in a dusty cement plant.
A classic rookie mistake is planning only for today's volume. If you choose a machine that just barely keeps up now, you'll be hamstrung when business picks up. Always plan for at least a 20-30% bump in capacity to give yourself room to grow.
Calculating Your Return on Investment
Once you've got your operational data in hand, it's time to build the business case. Calculating a realistic Return on Investment (ROI) is how you get the green light from the higher-ups. Stretch hood systems bring savings in a few key areas, and putting numbers to them makes the decision a no-brainer.
Your ROI story really boils down to three main chapters:
- Film Savings: Because the film is stretched before it's applied, these systems often use 30-50% less material for every pallet compared to old-school stretch wrappers. You can calculate this pretty easily based on your current film costs and usage.
- Labor Reduction: The automation here is a game-changer. It dramatically cuts down on the manual labor needed for wrapping, which means your operators can be reassigned to tasks that actually add more value.
- Product Damage Reduction: The tight, five-sided wrap creates incredibly stable loads. That means less product getting damaged in transit, which is a direct hit to your bottom line.
The final piece of the puzzle is teaming up with solid equipment and film suppliers. They can help you run tests with different films on your actual products to find that perfect balance of strength and cost. This kind of hands-on trial is critical to making sure the film you choose has the right holding force and protection for your specific loads. From there, it's all about investing in good operator training and setting up a preventative maintenance schedule to keep your system running at peak efficiency for years to come.
Answering Your Questions
Thinking about making the switch to a new packaging system? It's a big decision, and you've probably got some questions. Since this technology is a serious upgrade from older methods, let's clear up a few common points to see if it’s the right move for your operation.
What's the Real Upfront Investment?
Let's be upfront: a stretch hood machine costs more than a standard turntable wrapper. But looking only at the initial price tag misses the bigger picture. The real story is in the total cost of ownership, and that’s where this technology shines.
We've seen that stretch hood pallet wrapping systems often use 30-50% less film for every single load. Those material savings alone can lead to a surprisingly fast return on your investment. Once you factor in lower labor needs and a drop in product damage, the payback period is often much shorter than you'd think.
Think of it less as a capital expense and more as a strategic investment in efficiency and protecting your bottom line.
Will Stretch Hooding Work for My Products?
One of the biggest misconceptions is that stretch hooding is only for neat, square pallet loads. The reality is this technology is incredibly versatile. It really proves its worth on loads that are heavy, a bit unstable, or need serious protection from the elements.
Here are a few examples of where it's a perfect fit:
- Building Materials: Think bagged cement, bricks, and tiles. They often sit outside, and this gives them a waterproof shield.
- Chemicals & Polymers: You get a secure, sealed barrier that keeps contamination out.
- Appliances: It’s great for large, awkwardly shaped goods, holding them stable without a scratch.
- Food & Beverage: For heavy pallets that love to shift around in transit, this provides incredible load stability.
What Kind of Maintenance Am I Looking At?
Modern stretch hooders are built like tanks—they're designed for reliability and maximum uptime. The day-to-day maintenance is pretty straightforward, mostly involving scheduled check-ups and basic upkeep to keep things running smoothly.
Typically, you'll be checking film rollers for wear, making sure the sensors are clean and aligned, and lubricating moving parts on the manufacturer's schedule. These machines are built with high-quality components meant for tough industrial settings, which minimizes those surprise breakdowns. A solid preventative maintenance plan is all you need to keep your machine at peak performance for years.
