Imagine giving your pallet load a perfectly tailored, weatherproof coat in a single, automated motion. That's essentially what a stretch hood wrapping machine does. Unlike older methods that just wind film around and around a pallet, this technology creates a custom-sized film hood, stretches it out, and pulls it down over the entire load from top to bottom. This single action provides superior five-sided protection and incredible load stability, making it a true game-changer for modern logistics.
Understanding the Stretch Hood Wrapping Machine
At its heart, a stretch hood wrapping machine is an advanced automated system built to secure palletized goods. Don't think of it like wrapping a gift with paper and tape. It’s more like pulling a perfectly fitted, high-strength elastic sock over the entire load. This approach immediately solves nagging issues that plague traditional wrapping, like moisture exposure, dust contamination, and product damage during transit.
Instead of spiraling thin film layer by layer, the stretch hooder uses a continuous, gusseted tube of film. The machine measures the pallet’s dimensions, cuts the exact length of film it needs, and then heat-seals the top to form a "hood." It's a process that is both highly efficient and incredibly effective, creating a seamless barrier against the elements.
The Core Components at Work
The real magic of a stretch hood wrapping machine comes from the coordinated dance of its key components. Each part has a specific job that contributes to the final, tightly secured wrap.
- Film Carriage: This is where the action starts. The system holds one or more massive rolls of gusseted film and feeds out the precise amount needed for the load's height.
- Sealing and Cutting Bars: Once the film is measured, these bars come together to create a strong, waterproof seal across the top, officially forming the hood. They then cleanly cut it from the main roll.
- Stretching Arms: Four robotic arms—often called "fingers" or "grippers"—grab the open end of the hood. They then stretch it wider than the pallet itself, creating the powerful tension that’s essential for containing the load.
These components work together in a flawless, automated sequence. The stretching arms descend, pulling the tensioned film hood smoothly over every inch of the pallet load. As the arms release the film, its natural elastic memory kicks in, causing it to snap back and cling tightly to the products. This secures them from all sides and the top.
This method of vertical application is the secret sauce. It applies both horizontal and vertical holding forces at the same time, which is why it delivers such exceptional load stability. It effectively unitizes the entire load, stopping items from shifting, leaning, or falling apart during handling.
The end result is a clean, professional-looking package that doesn't just protect what's inside—it also opens up great branding opportunities. The high clarity of stretch hood film lets barcodes be scanned right through it and keeps product graphics visible, turning a simple protective layer into a powerful marketing tool. This technology is a massive leap forward in packaging efficiency and presentation.
How a Stretch Hood Machine Works, Step by Step
To really get what makes these machines so effective, picture a freshly stacked pallet rolling into place. What happens next isn't just wrapping; it's a fast, precise, and fully automated sequence that turns a wobbly load into a tight, weatherproof unit ready for anything. Think less like wrapping a present and more like a high-tech fitting for a protective suit.
The whole operation is a masterclass in efficiency, built for speed and consistency with almost zero human touch. Every move is perfectly timed to create a secure final package. Let’s walk through how it all comes together.
Stage 1: Pallet Detection and Measurement
The action starts the moment a pallet enters the wrapping area, usually on a conveyor. The machine doesn't just start guessing; its first job is to see exactly what it's working with. A bank of optical sensors or lasers instantly scans the load.
In a split second, this scan captures the pallet’s exact length, width, and height. This isn't just for show—it tells the machine precisely how much film to use. By calculating the dimensions on the fly, the system guarantees no wasted material and a perfect fit for every single load, even if the pallet sizes change from one to the next.
Stage 2: Creating the Film Hood
With the load’s measurements locked in, the machine gets to work on the film carriage. It pulls a continuous, gusseted tube of specialized stretch film from a massive roll, dispensing the exact length needed based on the height it just measured.
Once the film is in position, a set of sealing bars clamps down. These bars use a quick burst of heat to create a strong, clean seal across the top of the film tube. At the same time, a cutter slices the newly formed "hood" free from the main roll, leaving it ready for the next move.
That single top seal is a huge deal. It instantly creates a five-sided, waterproof barrier, giving the load far better protection from rain and dust than you’d ever get from a traditional stretch wrapper that leaves the top wide open.
Stage 3: Stretching and Preparation
Now for the main event—the part that always looks so impressive. Four robotic arms, often called grippers, descend to grab the open end of the film hood, one at each corner.
Moving in perfect sync, the arms stretch the film outwards until the opening is wider than the pallet's diagonal. This pre-stretching action puts a massive amount of tension into the film, waking up its natural elasticity. The hood is now a taut, expanded rectangle, held open and primed for application. This controlled stretch is where the powerful containment force comes from.
Stage 4: Hood Application and Release
With the film stretched and ready, the four arms glide down over the pallet. They travel smoothly from top to bottom, pulling the tensioned hood over every box and corner without snagging or tearing.
Once the arms hit the bottom of the pallet, they let go. The film’s elastic memory kicks in instantly, causing it to snap back and cling tightly around the entire load. This creates both strong vertical and horizontal tension, locking everything in place. You're left with a stable, unitized load inside a crystal-clear, protective skin.
This technology just keeps getting better, with things like AI integration pushing efficiency even higher. The market shows it, too—what was a $1.8 billion valuation in 2024 is on track to hit $4.2 billion by 2034. You can learn more about the market trends shaping packaging automation.
Key Benefits of Adopting Stretch Hood Technology
Moving to a stretch hood wrapping machine is much more than a simple equipment upgrade. Think of it as a strategic investment in the efficiency, security, and even the public perception of your entire supply chain. The benefits ripple out far beyond just wrapping pallets faster, touching everything from product integrity and operational costs to your brand's image.
This technology hits directly at some of the most common headaches in logistics—things like product damage in transit or the runaway costs of film and labor. By bringing this kind of advanced system in-house, companies gain a serious competitive edge through smarter operations and far better load protection.
Unmatched Load Stability and Protection
First and foremost, the biggest win with a stretch hooder is its incredible ability to stabilize a load. Traditional stretch wrap is wound around a pallet, but a stretch hood applies strong vertical and horizontal tension at the same time. This dual-action force essentially unitizes the entire load, locking products together so they can't shift, lean, or completely collapse on their way to a customer.
The process involves stretching a continuous tube of film—the "hood"—and pulling it down over the pallet to create a secure, five-sided enclosure. This approach is a game-changer for tricky loads, including:
- Bagged Products: Things like cement, seeds, or chemicals that love to shift around are held firmly in place.
- Irregular Shapes: The film conforms tightly to uneven stacks, giving you consistent containment where a spiral wrapper might leave gaps.
- Lightweight Goods: Delicate items are secured without the crushing pressure that can come from over-wrapping with traditional film.
This superior stability directly cuts down on product damage, which means fewer customer claims and costly returns.

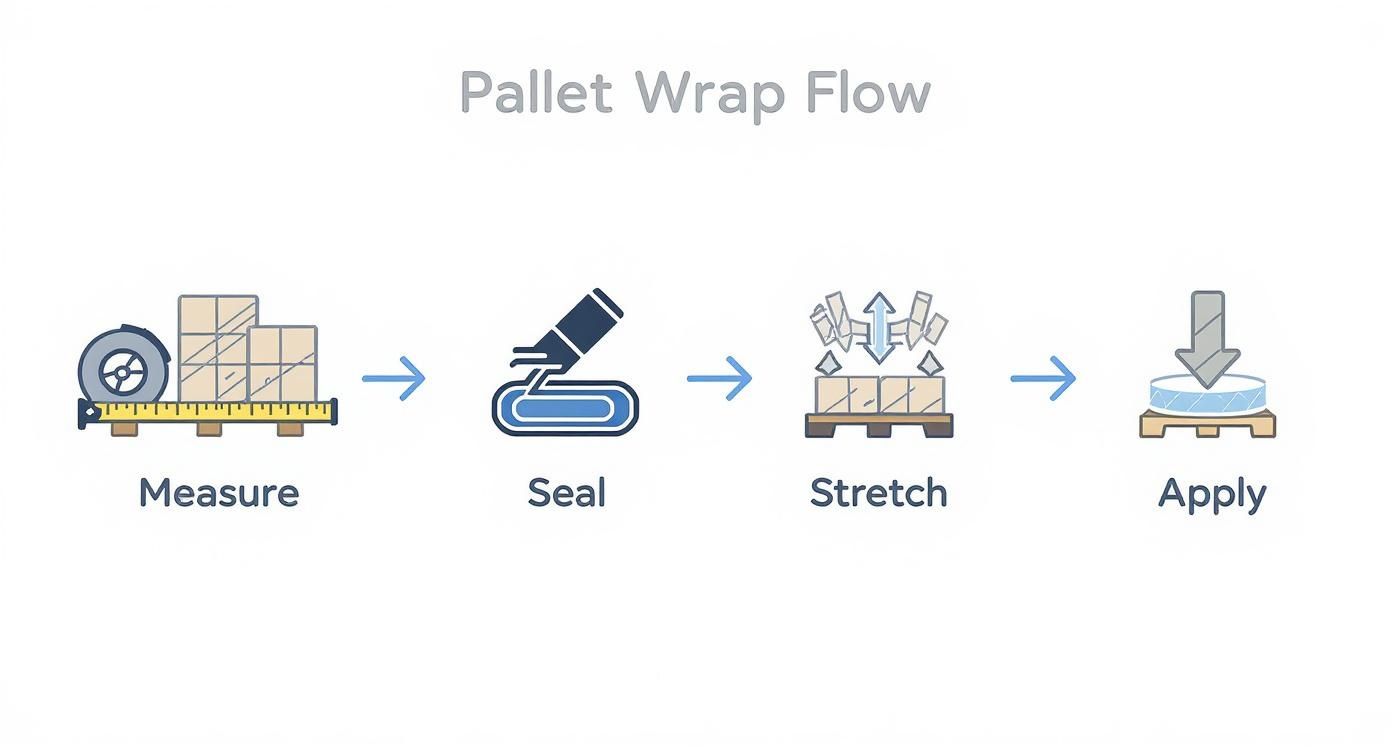

The whole process is a precise, automated sequence that guarantees a perfect fit every single time. This visual breaks down the core actions a stretch hooder takes to secure a pallet.
From measuring the load to applying the stretched hood, each step is automated to deliver consistent, reliable containment you can count on.
Superior Branding and Presentation
First impressions count, and a cleanly wrapped pallet says a lot about your company’s attention to detail. Stretch hood film is typically crystal-clear and applied without the wrinkles or messy "tail" you often see with conventional stretch wrap. The result is a smooth, professional look that showcases your products and branding.
The high clarity of the film allows for easy scanning of barcodes and labels right through the wrap, eliminating the need for warehouse staff to cut away film. This small detail speeds up inventory management and cuts down on handling errors.
Better yet, that smooth surface is the perfect canvas for printing high-resolution logos and marketing messages. Suddenly, your wrapped pallets are transformed into mobile billboards advertising your brand throughout the supply chain.
Significant Cost and Material Savings
While the initial investment is higher than a standard wrapper, a stretch hood machine delivers a powerful return through ongoing savings. One of the biggest impacts is on film consumption. The technology is built to get the most out of the film's elasticity, often leading to 10% to 30% less plastic usage compared to what you'd use with traditional wrapping methods.
On top of that, the fully automated process reduces the need for manual labor, freeing up your team for more valuable tasks. And beyond the immediate operational wins, it’s worth considering the significant ROI that automation can bring across the board. These machines are workhorses built for high-throughput environments, capable of wrapping over 50 loads per hour and drastically boosting efficiency.
If you want to see what specific models can do, checking out options like the Bocedi stretch hood can give you a deeper look at the features available. When you add it all up—reduced film waste, lower labor costs, and less product damage—the financial case becomes incredibly compelling.
Selecting the Right Stretch Hood Film
A top-of-the-line stretch hood wrapping machine is a powerful tool, but its performance is only as good as the film running through it. The machine provides the muscle, but it’s the film that delivers the real-world protection, stability, and presentation. Picking the right film isn't just a supply order—it's a critical decision that directly impacts load integrity, cost efficiency, and even how your customers perceive your brand.
The science behind modern stretch hood film lies in specialized polyethylene (PE) blends. This isn't your average plastic wrap. These films are engineered with multiple layers, where each layer contributes specific properties to create a high-performance material. The goal is always to strike the perfect balance between strength and flexibility, ensuring the film can survive the intense stretching process and still provide a secure, form-fitting wrap.
Understanding Key Film Properties
When you start comparing film options, the technical terms can feel a bit overwhelming. Let's break down the most important ones into simple concepts that directly affect your day-to-day operations. Think of these as the film's core skills—each one is vital for protecting your palletized goods.
- Elastic Recovery: This is the film's ability to "snap back" toward its original form after being stretched. High elastic recovery is what creates the tight, consistent force that holds your load together. It's the "hug" that keeps everything secure during transit.
- Puncture and Tear Resistance: Your film has to be tough. It needs to handle sharp corners on boxes, stray splinters on wooden pallets, or abrasive products without failing. Strong resistance prevents a small puncture from becoming a catastrophic tear on the road.
- Holding Force: This measures the constant pressure the film exerts on the load after it’s been applied. Proper holding force is the secret to preventing products from shifting, leaning, or collapsing, ensuring the pallet arrives looking just as good as when it left.
These properties all work together to deliver the security you expect from a stretch hood wrapping machine. A film that excels in all three areas is the foundation of a reliable packaging solution. You can get a better sense of the material science involved by reading more about the nuances of stretch hood film.
Choosing Film Thickness and Composition
Film thickness, measured in microns (µm), is another crucial factor. While a thicker film generally offers more strength and puncture resistance, it also comes with a higher price tag. The key is to find the sweet spot—the thinnest possible film that still provides complete protection for your specific load.
Think about the products you're wrapping:
- Uniform Loads: For stable, neatly stacked boxes or bags, a thinner film (like 60-80 microns) might be all you need.
- Sharp-Edged or Irregular Loads: Products with sharp corners or uneven shapes will demand a thicker, more puncture-resistant film (say, 100-120 microns) to prevent tears.
- Heavy or Unstable Loads: For seriously weighty goods like construction materials, you’ll need a high-performance film with maximum holding force and thickness to guarantee stability.
The goal is to match the film to the application. Over-specifying your film wastes money and material, while under-specifying it risks product damage and customer dissatisfaction. A collaborative approach with your film supplier is the best way to find the optimal balance.
The market for this technology is massive, with the global stretch hood pallet wrapping sector valued at around $8 billion in 2023. As demand for efficient, secure packaging grows, the major players continue to innovate. Having an informed conversation with your supplier about these material properties empowers you to select a film that maximizes performance, protects your goods, and keeps costs firmly in check.
How to Choose the Right Stretch Hood Machine
Picking out a new stretch hood wrapping machine is a major capital investment, and getting it right means looking way beyond the initial price tag. Think of it like adding a key player to your production team—you need a reliable performer that slots right into your workflow, handles your specific loads, and won't create headaches down the line. A little homework upfront ensures your machine will deliver a solid return for years to come.
This choice really boils down to a clear-eyed look at your operational reality. What works for a massive beverage plant will be total overkill for a regional distributor. By zeroing in on a few core criteria, you can narrow down a long list of models to a handful of perfect candidates for your facility.
Analyze Your Throughput and Load Characteristics
First things first, you need to crunch the numbers. How many pallets do you absolutely have to wrap per hour during your busiest shifts? This figure—your throughput requirement—is the single most important factor. A machine built for 50 pallets per hour is a completely different beast than one designed to handle over 100.
Next, think about what you're actually wrapping. Are you running the exact same pallet size all day, every day? Or is your line a constant mix of different heights, widths, and lengths?
- Single-Format Machines: These are perfect for operations with highly consistent pallet dimensions. They’re generally less complex and more budget-friendly.
- Multi-Format Machines: If your load sizes are all over the map, a multi-format machine is a must. These systems can automatically size up a pallet and switch to the right film on the fly, giving you incredible flexibility without painful manual changeovers.
Answering these questions honestly keeps you from either overspending on capacity you'll never use or, even worse, buying a machine that becomes a bottleneck the moment your volume picks up.
Evaluate Your Physical and Digital Infrastructure
A stretch hooder doesn't work in a vacuum. It needs to physically fit on your floor and digitally plug into your production systems. Start by breaking out the tape measure and checking your available factory footprint. Remember to account for not just the machine itself but also the clearance needed for maintenance access and the conveyor lines feeding into and out of it.
Integration is just as critical. How is this new machine going to talk to the rest of your line?
Seamless integration with upstream systems like palletizers and downstream conveyors is non-negotiable for achieving true automation. The machine should also be able to connect with your ERP or WMS for real-time data tracking and operational visibility.
This kind of connectivity is what allows for sharp production monitoring and helps you spot opportunities to become more efficient. And don't forget the basics—make sure you have adequate power and compressed air hookups right where the machine will be installed. Some advanced systems, like certain MSK Econotech models designed for energy efficiency, can even help reduce long-term operating costs, which is a huge plus.
Vet Your Potential Vendors Thoroughly
Once you've got your technical specs figured out, the focus shifts to choosing a partner, not just a piece of equipment. The quality of a vendor's after-sales support is just as important as the machine's build quality. A fantastic machine from an unresponsive supplier can quickly turn into your biggest headache.
Before you sign on the dotted line, have a checklist of questions ready for every potential vendor. This makes sure you're comparing them apples-to-apples and helps you see the true total cost of ownership over the machine's life.
Key Questions for Vendors:
- What does your standard warranty cover, and for how long?
- Where are your service techs based, and what’s their guaranteed response time?
- Do you stock critical spare parts locally? What’s the typical lead time to get them?
- What kind of training do you provide for our operators and maintenance crew?
- Can you give us references from companies in our industry with similar setups?
A vendor who gives clear, confident answers is likely one you can count on. This is a strategic investment. It’s about more than just the hardware; it's about building a relationship that will support your success for years to come.
Alright, let's get this section sounding like it came straight from a seasoned pro who's seen it all on the warehouse floor.
Getting Your Machine Set Up for the Long Haul
Buying a stretch hood machine is a fantastic move, but the real win comes from what you do after it lands on your dock. Think of proper integration and maintenance as the two legs your investment stands on. Get them right, and your machine will hum along efficiently, keep downtime to a minimum, and pay you back for years to come.
Getting started isn't just about clearing a space and plugging it in. A smooth launch means making sure your new machine plays nicely with the rest of your production line right from the get-go.
Planning a Painless Integration
A successful integration actually starts long before the delivery truck shows up. Getting your site prepped ahead of time is the difference between a quick, seamless install and a week of headaches and costly delays. You’ll want to work closely with your vendor and your own team to nail down a few key details.
- Floor and Utility Prep: Make sure the concrete floor is level and can handle the machine's weight. You'll also need dedicated electrical and compressed air lines that meet the manufacturer’s specs. Skimping here is just asking for performance problems down the road.
- Seamless Line Connection: Your stretch hooder has to communicate perfectly with the equipment before it (like palletizers) and after it (like conveyors). This is about more than just physical alignment; it’s a digital handshake that keeps pallets moving without a single hiccup.
Honest talk: Proactive planning is what separates a smooth, one-day installation from a week of expensive troubleshooting. A detailed site plan that maps out pallet flow, utility connections, and safety zones isn't just a nice-to-have, it's non-negotiable.
Mastering Proactive Maintenance
Once you're up and running, the game shifts to taking care of your new asset. A simple, consistent preventative maintenance schedule is your absolute best defense against the kind of surprise breakdowns that can shut down your entire line. In fact, solid maintenance practices can prevent up to 50% of transport damages simply by ensuring the wrap quality never falters.
You don't need a complicated plan, just a consistent one. Breaking it down into daily, weekly, and monthly checks is the easiest way to keep your team on track and the machine in prime condition.
Your Go-To Preventative Maintenance Checklist:
- Daily Checks: A quick look-over before each shift is a must. Operators should be cleaning dust off sensors, checking for any loose parts, and making sure the film roll is seated correctly. It takes five minutes.
- Weekly Tasks: Once a week, dig a little deeper. This is a good time to lubricate key moving parts like chains and bearings. Also, take a look at the film sealing bars for any gunk or residue that could mess with the seal quality.
- Monthly Inspections: These are your more thorough check-ups. Inspect wear-and-tear parts like rollers and belts, check the tension on the drive chains, and—critically—test all the safety stops and controls to ensure they’re working perfectly.
When you empower your own team to handle these routine checks and fix small things (like a poor film application), you're not waiting around for a service tech to show up. Knowing how to clean a sensor versus when it's time to call in the pros is the secret to maximizing uptime and getting the absolute most out of your stretch hooder.
Of course. Here is the rewritten section, designed to sound like an experienced human expert while maintaining the original content and structure.
Your Stretch Hood Questions, Answered
Making a big investment in your packaging line always comes with questions. It's only natural. Let's tackle some of the most common ones we hear about stretch hooders to give you a clearer picture of how they work in the real world.
What’s the Real Cost of a Stretch Hood Wrapping Machine?
You’re typically looking at an investment between $100,000 and $300,000 for a stretch hood wrapping machine. That's a pretty wide range, and the final price tag really boils down to your specific needs. Are you wrapping 50 pallets an hour or 150? Do you need the machine to automatically adjust for a dozen different pallet sizes? How seamlessly does it need to tie into your existing conveyor system? These are the factors that drive the cost.
While that initial price is definitely higher than a standard stretch wrapper, the ROI story is compelling. Most operations see that cost balanced out by major savings in film, lower labor needs, and a dramatic drop in those costly product damage claims.
Can a Stretch Hooder Actually Handle Awkward Pallets?
Absolutely—and this is where the technology truly shines. A stretch hood machine is a pro at wrapping those tricky, unstable, or just plain weird-shaped loads.
Think about it: the film hood is stretched open wider than the pallet and then lowered vertically. This allows it to hug every contour of your load, providing incredible stability without crushing what's inside. It’s the perfect fix for:
- Mixed pallet loads with a jumble of different box sizes.
- Bagged goods, like mulch or pet food, that love to shift around.
- Anything that’s tough to stack into a neat, uniform column.
How Much Film Will I Actually Save by Switching?
It's not uncommon for businesses to see film savings of 10% to 30%—sometimes even more—after making the switch from traditional stretch wrapping. This isn't just a marketing claim; it comes down to a few smart design features.
A stretch hooder uses a pre-sealed tube of film, so there’s no wasteful "tail" left behind like you get with a conventional wrapper. Plus, the high-performance film is engineered for maximum stretch, so you use less material to get even better load containment. It’s a win for your budget and your sustainability goals.
The efficiency of these machines is a huge reason the market is growing so fast. The global stretch hood pallet wrapping machine market was valued at around $1.2 billion in 2024 and is on track to hit $2.3 billion by 2033. You can discover more insights about stretch hood market growth to see the full picture.
