Mastering Stretch Hood Wrapping for Your Pallets

Why Stretch Hood Wrapping Is the Future of Pallet Protection

When you’re pushing for more efficiency and reliability in your supply chain, the old ways of securing pallets just don't cut it anymore. Traditional stretch wrap and shrink hooding have been the go-to for years, but they have their limits—especially when it comes to weather resistance, keeping a load stable, and making your brand look good. This is where stretch hood wrapping comes in, and it's completely changing the game.

Picture this: a pallet of cement bags is sitting on a tarmac when a sudden downpour hits. With standard stretch wrap, water can easily sneak in through the top or between the layers, ruining the product. Stretch hood wrapping creates a seamless, five-sided waterproof cocoon. It seals the load completely, making sure your product shows up in perfect condition, every time.

This isn’t just a niche solution; it's a massive shift. The global market for stretch hood pallet wrapping hit roughly $2.5 billion in 2025 and is set to grow at a healthy 7% clip through 2033. That growth is being driven by the boom in e-commerce and the industry-wide push to automate warehouses.

Unbeatable Load Containment and Stability

One of the biggest wins with stretch hood wrapping is its incredible holding force. The machine stretches the film tube both horizontally and vertically before it’s applied. When the film is released, it snaps back, creating a powerful tension that locks the entire load down.

Think about a wobbly, tall pallet of bottled water. With old-school wrap, you’d expect some shifting and leaning during transit, which often leads to damaged goods. A stretch hood, on the other hand, applies uniform pressure from all sides, basically turning the pallet into a single, solid block. This dual-axis containment dramatically cuts the risk of shifting, making it a perfect fit for irregularly shaped or unstable loads.

Key Takeaway: It’s the combination of vertical and horizontal force that gives stretch hoods an edge. You get a level of load integrity that’s tough to match with layers of spiral wrap, which translates to fewer damages and rejected shipments.

Better Brand Visibility and Product Integrity

It’s not just about protection. Stretch hoods offer a major upgrade in presentation. The film is typically crystal-clear, giving you perfect product visibility and easy barcode scanning without any wrinkles or layers getting in the way. That clean, professional look reinforces your brand’s quality from the moment the pallet arrives.

Here are a few more real-world benefits:

• Waterproof and Dust-Proof: A sealed top and sides create a five-sided shield, protecting goods stored outside or hauled on open-sided trucks.
• Puncture Resistance: The film is thick and elastic, so it stands up to tears and punctures much better than standard stretch wrap—a huge plus for products with sharp corners.
• No Heat Needed: Unlike shrink hooding, this process is entirely heat-free. That makes it completely safe for heat-sensitive products like pharmaceuticals, food, or frozen goods.

This powerful mix of top-tier protection, stability, and presentation is exactly why industries from construction to food and beverage are making the switch. To get a better sense of how it all works, you can check out our deep dive into stretch hood technology. Once you grasp these advantages, it's easy to see how this method can transform your own operations.

Choosing the Right Stretch Hood Film for Your Products

Getting your stretch hood film selection right is probably the single most critical decision you'll make in the entire wrapping process. This one choice is the difference between a pristine, weatherproof pallet and a failed load that costs you money, inventory, and maybe even a customer. This isn't just about grabbing a roll of plastic; it's about matching a highly engineered solution to your specific products, warehousing conditions, and shipping realities.

The film itself is a pretty impressive piece of material science. It’s no surprise the market for these specialized films is growing fast, projected to jump from about $1.07 billion in 2025 to $1.75 billion by 2031. That growth is all about the film’s multi-layer structure, which is what gives it the incredible elasticity, tear resistance, and strength needed to secure everything from fragile glass to sharp-edged construction materials. For a deeper dive into market trends, check out the latest industry analysis on infinitymarketresearch.com.

Decoding Film Composition and Properties

The secret to a great stretch hood film lies in its material blend. Most are made from different polyethylenes, but a couple of key ingredients really dictate how the film will perform on the job.

• Linear Low-Density Polyethylene (LLDPE): Think of this as the workhorse. It provides the film's basic structure and stretch, making it a solid, cost-effective choice for a lot of standard pallet loads.
• Metallocene: This is the high-performance additive that takes things to the next level. Blending in metallocene dramatically boosts puncture resistance, clarity, and the all-important holding force. If you're wrapping heavy loads or products with sharp corners—like a pallet of bricks or metal parts—you'll want a film with a healthy dose of metallocene.

Beyond the raw materials, it all comes down to two properties: elasticity and holding force. Elasticity is how far the film can stretch without snapping. Holding force (or containment force) is its ability to spring back and grip the load tight. Get this balance wrong, and you're in for trouble. Too little stretch, and the film tears during application. Too little holding force, and your load could shift or collapse in transit.

Matching Film Thickness to Your Load

Film thickness, measured in microns (µm), is where performance meets budget. It's a constant balancing act. Go too thick, and you're just throwing money away on excess material. But go too thin, and you're risking a catastrophic failure that will cost you way more than you saved on film.

Let’s look at a couple of real-world scenarios:

1. Lightweight Boxes of Cereal: This is a stable, uniform load. A thinner film, maybe in the 60-80 micron range, with good elasticity is more than enough. The main goal here is just to keep dust and moisture out, not to wrestle the load into submission.
2. Heavy Bags of Cement: Now this is a different beast entirely. The load is heavy, prone to shifting, and will likely be stored outside. For this, you absolutely need a thicker, tougher film (100-120 microns) with high metallocene content for puncture resistance. You’d also want a UV inhibitor to keep the sun from degrading the film over time.

Expert Tip: Don't fall into the "thicker is always better" trap. A high-quality, thinner film engineered with the right metallocene blend can easily outperform a thicker, cheaper film. The goal is performance, not just piling on microns.

To help visualize this, here's a quick guide matching film types to common industrial loads.

Stretch Hood Film Selection Guide

Load Type / Industry	Recommended Film Thickness (Microns)	Key Film Properties	Common Application Example
Food & Beverage	60 – 90 µm	High clarity, elasticity, printability	Pallet of bottled water or canned goods
Building Materials	100 – 140 µm	High puncture/tear resistance, UV stability	Pallet of bricks, cement bags, or shingles
Chemicals	90 – 120 µm	High holding force, chemical resistance	Bags of fertilizer, drums of industrial chemicals
Appliances/Electronics	70 – 100 µm	Good clarity, puncture resistance, anti-static (optional)	Boxed washing machines or servers
Paper & Printing	60 – 80 µm	Dust and moisture protection, good containment	Stacks of corrugated boxes or paper reams

This table provides a starting point, but always consult with your film supplier to dial in the perfect spec for your unique needs.

Considering Specialty Films for Unique Needs

Sometimes, your standard film just won't cut it. Your product or its journey through the supply chain might demand something more specialized.

For instance, manufacturers of sensitive electronics can't risk static discharge damaging their components. The solution? An anti-static stretch hood film. It’s formulated with additives that safely dissipate static charge, protecting thousands of dollars in product.

Likewise, if your pallets are going to be sitting in a yard for months, a film with a UV inhibitor is a must. Standard film gets brittle and weak under constant sun exposure, but a UV-stabilized film will hold up and keep your product protected. A good way to get familiar with all the options is to review a comprehensive guide on the different types of stretch hood film.

By taking a close look at your product’s weight, shape, storage plans, and any other unique challenges, you can zero in on a film that delivers total protection and ensures your goods arrive looking as good as they did when they left your facility.

Fine-Tuning Your Stretch Hood Machine Settings

Once you’ve landed on the right film, the next step is getting that choice to perform in the real world by dialing in your machine settings. This isn't just about going through a generic checklist. It's about really understanding the relationship between your film, your product, and your equipment. The difference between a smooth operation and a frustrating one often comes down to mastering both the mechanical setup and the software parameters.

The process starts with the physical, hands-on side of things. Getting a new film roll loaded correctly is absolutely foundational. Make sure it’s centered perfectly on the mandrels and feeds without any binding. Even a tiny misalignment here can snowball into uneven stretching and potential tears down the line.

Next up, give your mechanical parts a quick but thorough look-over. Check the film grippers—are they clean and free of any gunk? Worn or dirty grippers won't hold the film securely, which often leads to slippage right when it starts to stretch. Also, inspect the sealing bar. Any old residue or damage on this bar can create a weak seal at the top of the hood, completely undermining its weatherproofing.

Navigating the Human-Machine Interface

With the mechanicals squared away, it’s time to shift your focus to the HMI—the brain of your entire stretch hood operation. This is where you fine-tune the settings that control exactly how the film is applied to every single pallet. While the interface can look a bit different from one manufacturer to the next, a few core settings are universal and absolutely critical to get right.

• Stretching Ratio: This is the big one. It controls how much the film is stretched before it’s even lowered onto the pallet. Pushing the ratio higher creates more containment force, but you also run a much higher risk of the film tearing, especially on sharp corners.
• Hood Descent Speed: This setting dictates how quickly the hood is pulled down over the load. A faster speed is great for throughput, but a slower, more controlled descent is usually a better bet for tall or unstable pallets to keep things from snagging.
• Sealing Temperature and Time: These two work in tandem to create a strong, clean seal at the top of the hood. The perfect temperature and duration really depend on your specific film’s thickness and composition.

Getting a feel for how to adjust these settings is a game-changer for any facility. For those just getting into automation, digging into the capabilities of modern automatic stretch hood machines can give you a much clearer picture of what's possible.

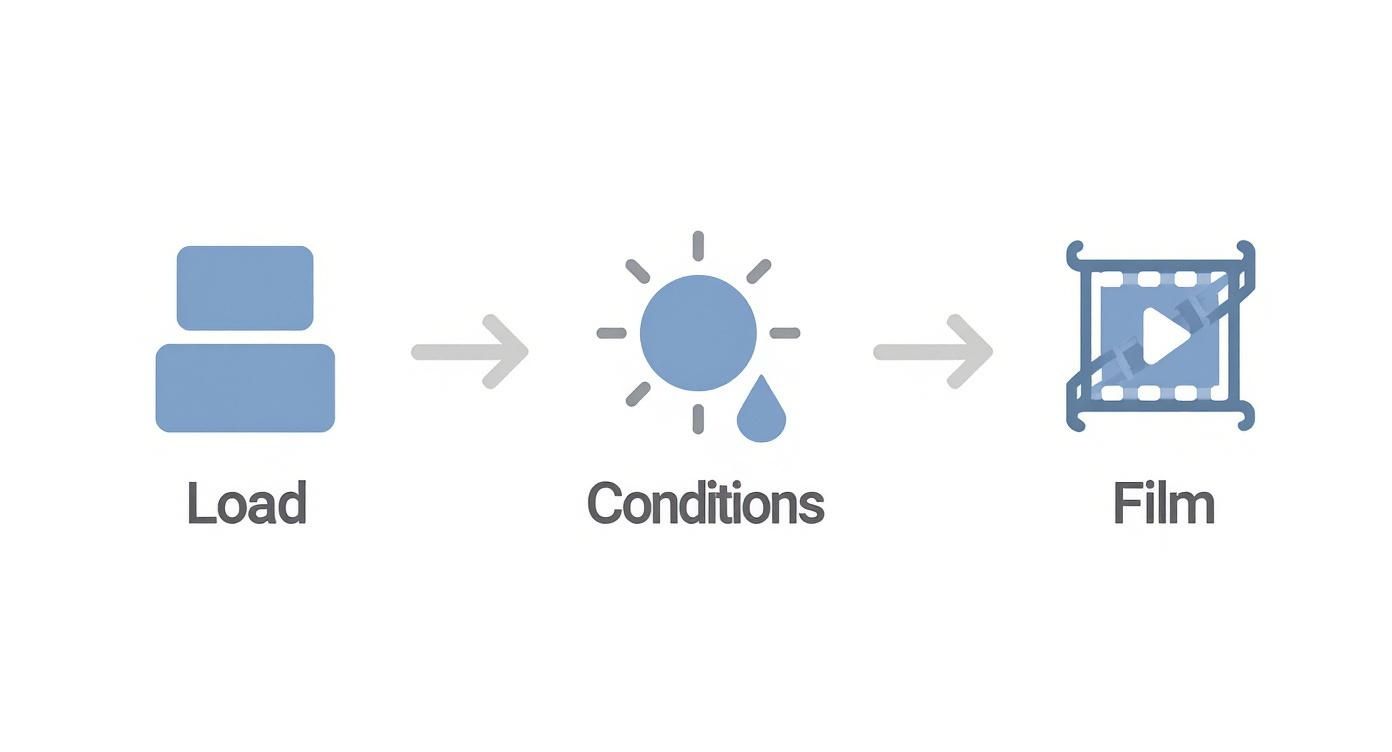

This diagram really breaks down the core thinking process, connecting your load and conditions directly to how you apply the film.

As you can see, you have to assess your load's physical traits and its potential exposure to the elements before you can even think about applying the right film.

A Real-World Example: Adapting on the Fly

Let's walk through a practical scenario. Imagine your warehouse just wrapped a run of short, heavy pallets of concrete bricks and is now switching over to tall, wobbly pallets of PET bottles. Just letting the machine run with the same settings would be a recipe for disaster. The aggressive, high-tension settings that worked great for the bricks would probably shred the film on the bottle pallets or, even worse, topple the whole load.

Here’s how you’d actually adapt the parameters for this new load:

1. Lower the Stretching Ratio: The bricks have sharp, abrasive corners, so you’d use a tough film with a moderate stretch to prevent punctures. But the PET bottles create a much less stable column. You’d need to dial back the stretching ratio significantly to reduce that inward force, prioritizing stability over maximum compression to keep the bottle layers from shifting.

2. Slow Down the Hood Descent Speed: For those short, solid brick pallets, a fast descent is all about efficiency. But for the tall, wobbly bottle pallets, you have to slow the descent speed way down. This gives the film more time to conform to the load's shape without catching on corners or creating a sudden pressure spike that could make the stack sway.

3. Adjust the Film Release Point: For the bricks, you want the film to release low and tight at the base of the pallet, locking everything down. For the bottles, you might adjust the release point to be slightly higher, making sure the film tucks securely under the top layer of bottles without messing with the stack's integrity.

Key Insight: Fine-tuning is an iterative process. Never be afraid to run a few test pallets and make small, incremental adjustments. Documenting the best settings for each of your main load types will save you a massive amount of time and prevent costly mistakes during future changeovers.

When you treat machine setup as a responsive, adaptable process instead of a "set it and forget it" task, you guarantee that every pallet leaves your facility with the exact protection and stability it needs. This attention to detail is the final, crucial step in unlocking the full power of your stretch hood system.

Your Framework for Quality Control and Safety

Getting your stretch hood machine humming is just the first step. The real test of a great operation is consistency—delivering perfectly wrapped, secure pallets every single time. This is where you separate the pros from the amateurs.

It all comes down to a proactive framework for quality and safety. Without it, you’re just reacting to problems. Small film inconsistencies turn into damaged freight, and a single safety oversight can lead to a serious accident. The goal is to build a culture where quality and safety are baked into the daily rhythm, not just a box to be checked.

A solid plan turns every operator into a guardian of your products and your people. It’s about creating simple, repeatable checks that become second nature.

Building a Visual Inspection Checklist

Your operators are the first line of defense. By training their eyes, you can catch 90% of common stretch hood issues before a pallet ever leaves the line. This isn't about some long, complicated form; it's a quick scan that should happen with every single load.

Here’s what your team should be looking for:

• "Dog Ears" at the Corners: These are those loose, ugly flaps of film at the top corners. They’re a dead giveaway that the hood wasn't stretched or applied correctly and are notorious for snagging and tearing the whole hood in transit.
• Punctures or Tears: Any hole, big or small, compromises the entire protective barrier. Operators need to keep an eye out for these, especially around sharp corners or the pallet itself.
• Uneven Film Application: The film should look like a smooth, tight skin. If you see wrinkles, creases, or baggy spots, you likely have an issue with film tension or the machine's descent speed.
• Poor Pallet Lock: Look at the very bottom of the load. The film needs to be pulled securely under the pallet's top deck boards. This is what truly locks the load to the pallet. If the film ends too high, you’ve got an unstable load waiting to happen.

A quick walk-around that takes less than 15 seconds can save you thousands in damaged goods. It's the most powerful and cost-effective quality control tool you have.

For those who need to get more technical, some operations use tools to measure containment force—the actual squeezing pressure the film puts on the load. While not everyone needs this, it provides incredible data for optimizing film gauge and ensuring high-value or unstable loads are rock-solid.

Implementing Non-Negotiable Safety Protocols

While quality checks protect your products, safety protocols protect your people. A stretch hooder is a powerful piece of automated machinery, and complacency is its greatest enemy. Adhering to strict Australian workplace safety standards—or your local equivalent—isn't just a suggestion, it's fundamental.

Your safety framework has to be built on rules that are clear, simple, and absolutely non-negotiable.

Critical Safety Mandates:

1. Respect All Safety Guards: Light curtains, gates, and physical guards are not suggestions. Bypassing them for a "quick fix" is completely off-limits. If a light curtain trips the machine, the first instinct should never be to reach inside.
2. Strict Lockout/Tagout (LOTO) Procedures: Before any maintenance, cleaning, or jam-clearing, the machine must be fully de-energized using proper LOTO protocols. This eliminates any chance of the machine starting up while someone is working on it.
3. Know the Emergency Stops: Every single person who works near the machine—operators, supervisors, maintenance—needs to know where every E-stop button is and be ready to use it without a second thought. Run drills to build this muscle memory.

At the end of the day, a safe operation is a productive one. When you weave these quality and safety checks into your daily standard operating procedures, you create a packaging environment that is reliable, efficient, and secure for everyone.

Even with a perfectly tuned machine and the right film, things can still go sideways on the production floor. The real skill is knowing how to spot and fix these issues fast to keep downtime to a minimum. Think of this as your on-the-floor guide for tackling the most common headaches you'll run into with stretch hood wrapping.

We'll turn those frustrating setbacks into quick, actionable fixes.

Whether it's film tearing or wobbly loads, most problems boil down to a mismatch between your film, machine settings, and the product itself. Let’s dig into how to find the root cause and get things running smoothly again.

What to Do When the Film Tears

A film tear during the stretching or application phase is probably the most common—and annoying—problem you'll face. The gut reaction is to blame the film, but nine times out of ten, the cause is something in your process. Before you get on the phone with your supplier, take a closer look at your setup.

A tear is a clear sign the film is being pushed beyond its limits. For instance, if you’re wrapping pallets of bricks or sharp-edged metal parts, you need a film with serious puncture resistance. This is exactly why the construction industry is the single biggest user of stretch hood films, accounting for over 35% of the global market. The demand there is expected to hit nearly $328 million by 2025, all driven by the need to secure rugged materials. You can get more details on these global industry trends on openpr.com.

If you’re seeing tears, here’s where to start looking:

• Your Stretching Ratio: Is it cranked up too high for the film you're using? Try dialing it back by 5-10% and see if that solves it.
• Worn Gripper Fingers: Take a good look at the mechanical grippers holding the film. If they're dirty, worn down, or have nicks in them, they can create a tiny weak spot that blows out into a major tear under tension.
• Sharp Pallet Edges: Are there nails, splinters, or rough corners on the pallets themselves? A quick inspection before wrapping can save you a lot of grief.

How to Fix Unstable or Shifting Loads

A finished pallet that feels wobbly or loose is a disaster waiting to happen. If your loads are shifting, it’s a clear signal that the film isn’t applying enough containment force to lock everything in place. This isn't about the film breaking; it's about it not gripping the load tightly enough.

The fix almost always involves adjusting the film tension and how it’s applied. You want the film to give the load a firm, uniform "hug" from all sides.

Expert Tip: Don't just focus on the horizontal tension. The vertical "pull down" force is just as critical for stability. You need to make sure the film is released at the right moment to tuck securely under the pallet's top deck boards. That’s what truly locks the load to the pallet.

If your load stability is poor, try these tweaks:

• Increase the Stretching Ratio: Sometimes, a small, incremental increase is all it takes to significantly boost the holding force.
• Check Hood Placement: The hood needs to be perfectly centered over the pallet every time. If it's off-center, you'll get uneven tension—one side will be taut while the other is loose.
• Re-evaluate Your Film Choice: The film you're using might just be too elastic for the product. A heavier or irregularly shaped load often needs a film with a higher holding force, even if that means a little less overall stretch.

Solving Inconsistent Seals and Wrinkles

Wrinkled film or a weak top seal might seem like just a cosmetic issue, but they’re usually symptoms of a deeper problem. Wrinkles point to uneven tension, and a bad seal completely undermines the five-sided, weatherproof protection that makes stretch hooding so valuable.

These problems are almost always tied to the sealing bar or the final moments of the film's application.

Troubleshooting Checklist

1. Inspect the Sealing Bar: Check it for any built-up film residue, dirt, or physical damage. A dirty sealing bar can’t transfer heat evenly, which is a classic cause of weak spots in the seal.
2. Adjust Sealing Temp and Time: Pull out the technical data sheet for your film. It will tell you the optimal range for both temperature and time. Make sure your machine settings are within those specs.
3. Slow Down the Hood Descent: If the film is wrinkling as it comes down over the load, the descent speed might be too fast. This doesn't give the film enough time to conform smoothly to the product’s shape.

By walking through these potential causes methodically, you can quickly turn a struggling wrapping process into a smooth, reliable operation that ensures every single pallet is secure and protected for the journey ahead.

---

We've put together a quick-reference table to help you diagnose and fix some of the most frequent issues you might encounter on the line.

Common Stretch Hood Wrapping Problems and Solutions

Observed Problem	Potential Cause	Recommended Solution
Film Tears During Application	Stretch ratio too high; Worn gripper fingers; Sharp edges on the pallet or product.	Reduce stretch ratio by 5-10%; Inspect and clean/replace grippers; Inspect pallets and loads before wrapping.
Unstable or Shifting Load	Insufficient containment force; Off-center hood application; Film is too elastic for the load.	Incrementally increase the stretch ratio; Adjust machine alignment for proper centering; Switch to a film with higher holding force.
Wrinkled or Loose Film	Hood descent is too fast; Uneven tension from machine settings.	Slow the descent speed; Check and recalibrate film tensioners and gripper finger pressure.
Weak or Incomplete Top Seal	Dirty sealing bar; Incorrect sealing temperature or time.	Clean the sealing bar thoroughly; Adjust settings to match the film's technical data sheet.
"Hourglassing" on Load	Vertical tension is too high, pulling the middle of the load inward.	Adjust the film release point to be slightly higher; Reduce the vertical stretch component in the machine parameters.

Hopefully, this chart gives you a solid starting point the next time you run into trouble. A systematic approach is always better than random guesswork.

Common Questions About Stretch Hood Wrapping

Even after seeing the benefits, it’s natural for managers and operators to have a few questions before committing to stretch hood wrapping. It’s a serious investment in your packaging line, and it's smart to understand the day-to-day realities. Let's walk through some of the most common queries we hear to help you feel confident about the technology.

Getting these details sorted out is key. This equipment is built to be tough and adaptable, but knowing exactly what to expect is crucial for a smooth transition and long-term success on your production floor.

How Does the Cost Compare to Traditional Stretch Wrapping?

This is usually the first question people ask, and for good reason. While the initial capital investment for a stretch hood machine is higher than for a standard turntable stretch wrapper, the long-term operational costs are almost always lower. The real story is in the total cost of ownership.

Stretch hood technology is incredibly efficient with film. It achieves a very high containment force without needing endless layers of wrap, which means it uses significantly less film per pallet. Over time, especially in high-volume operations, this reduction in film consumption leads to massive savings.

Key Takeaway: Don't just look at the upfront machine price. You have to factor in film savings, higher throughput (more pallets per hour), and reduced labor needs. For many facilities, the lower cost-per-pallet wrapped results in a strong—and often surprisingly quick—return on investment.

Can I Wrap Irregularly Shaped or Mixed Pallets?

Absolutely. This is one of the biggest advantages of modern stretch hood systems. They are engineered for exactly this kind of versatility.

Today's machines come equipped with advanced sensors that measure the precise dimensions—length, width, and height—of every single pallet as it enters the wrapping zone. The system processes this information instantly, calculates the exact amount of film needed, and adjusts the hood application on the fly. This "smart" capability makes stretch hood wrapping perfect for environments with a ton of product variability.

Think about a busy distribution center handling mixed loads. One pallet might be a perfect cube of boxes, but the next could be a lumpy, irregular stack of different-sized items. A stretch hooder can securely wrap both, back-to-back, without anyone needing to stop and change settings. You get consistent protection no matter what the load looks like.

What Are the Maintenance Requirements?

Just like any piece of industrial machinery, a stretch hooder needs regular maintenance to stay in peak condition. Being proactive here is the best way to minimize downtime and keep the equipment running safely and efficiently. The good news is that a typical maintenance schedule is pretty straightforward and easy to integrate into your existing plant procedures.

Here’s a quick breakdown of what to expect:

• Daily Checks: These are quick, simple visual inspections. Operators should glance at key components like the film grippers, sealing bars, and safety sensors to make sure they’re clean and free of debris.
• Weekly Tasks: This usually involves light cleaning to remove any film residue and lubricating specific moving parts, just as outlined in the manufacturer's guide.
• Scheduled Preventive Maintenance: More in-depth checks, like inspecting wear-and-tear parts such as cutting blades and belts, are typically done on a monthly or quarterly basis.

Simply following the manufacturer's recommended maintenance plan is the best way to prevent unexpected problems. A well-maintained machine is a reliable machine, and a little scheduled care goes a long way in protecting your investment.

---
