Picture this: you need to protect a pallet of goods, not just from tipping over, but from everything. Rain, dust, dirt, you name it. You need something that wraps it up tight and keeps it completely sealed. That, in a nutshell, is what a stretch hood machine does. It’s a massive step up from the old ways of wrapping pallets, giving you rock-solid load stability and full five-sided protection in one smooth, automated motion.
Understanding the Stretch Hood Machine
So, what exactly is this thing? A stretch hood machine is an automated system that takes a tube of highly elastic, gusseted film and fits it perfectly over a pallet load.
Forget what you know about spiral wrapping a pallet with stretch wrap. This is different. Think less about wrapping a gift and more about pulling a snug, perfectly-sized sock over your foot. The machine grabs the film "hood," stretches it open, lowers it down over the entire pallet, and then releases it. The film snaps back, creating a tight, waterproof, and incredibly secure seal.
This isn't just a minor tweak to pallet wrapping; it's a completely different approach, and it's catching on fast for some very good reasons:
- Unbeatable Load Stability: The film applies force from all sides—vertically and horizontally—locking your products together. Nothing’s shifting in transit.
- Total Weatherproofing: With the top and all four sides sealed, your goods are safe. This is a game-changer for outdoor storage or shipping in bad weather. With the right film, it even protects against UV rays.
- Sharp Branding: You can use crystal-clear film to show off your products or printed film to turn every pallet into a moving billboard. It looks clean and professional, unlike the messy layers of traditional stretch wrap.
- Serious Efficiency: These machines are fast, cutting down on labor costs and using significantly less film than other methods.
This technology is fundamentally changing how companies think about product protection. The global market for these machines was valued around USD 753.5 million and is expected to hit USD 1.5 billion in the next decade. That kind of growth tells you something—people are tired of damaged goods and inefficient packaging. You can read the full research about the pallet stretch hood machine market to see the detailed forecast.
Stretch Hood vs. Traditional Wrapping Methods
To really get why stretch hooding is such a big deal, it helps to see how it stacks up against the old standbys: shrink wrap and stretch wrap. They might sound similar, but the results are worlds apart.
Here’s a quick rundown of the key differences.
| Feature | Stretch Hood Machine | Shrink Wrap | Stretch Wrap |
|---|---|---|---|
| Protection | 5-sided waterproof seal | 5-sided protection | Partial coverage (top exposed) |
| Material Use | Highly efficient; no excess | Moderate | High; often uses excess film |
| Energy | Low energy; no heat required | High energy (heat tunnel) | Low energy |
| Speed | Very high (50+ loads/hr) | Moderate | Low to high, depending on automation |
| Branding | Excellent; clear or printed | Good; can obscure graphics | Poor; layers distort branding |
As you can see, stretch hooding comes out on top in almost every category, from protection and material efficiency to speed and branding potential. While the upfront investment is higher, the long-term savings in materials, energy, and reduced product damage often make it the smartest choice.
How the Stretch Hooding Process Works, Step by Step
To really get a feel for what a stretch hood machine does, it helps to walk through the journey a pallet takes from the moment it hits the infeed conveyor. The whole thing is a smooth, automated dance that turns a simple tube of film into a tough, five-sided shield for your products. It’s a pretty slick solution—far more than just wrapping, it's a precision-engineered application.
The action starts the second a pallet rolls into the machine's wrapping zone. A network of sensors immediately gives the pallet a quick "scan," measuring its exact length, width, and height. This isn't a one-size-fits-all deal; it’s like getting a custom-tailored suit for every single load. That data is crucial for what comes next.
From Measurement to Application
Using the pallet's exact dimensions, the machine pulls the perfect length of gusseted film from a massive roll. It then cuts and seals one end, creating what's called a "hood." This freshly made hood is then passed off to a set of robotic grippers, or "fingers."
This is where you see the real magic happen. The grippers stretch the elastic film open, pulling it both lengthwise and sideways, creating an opening big enough to swallow the entire pallet. The film is held under just the right amount of tension, ready to be applied.

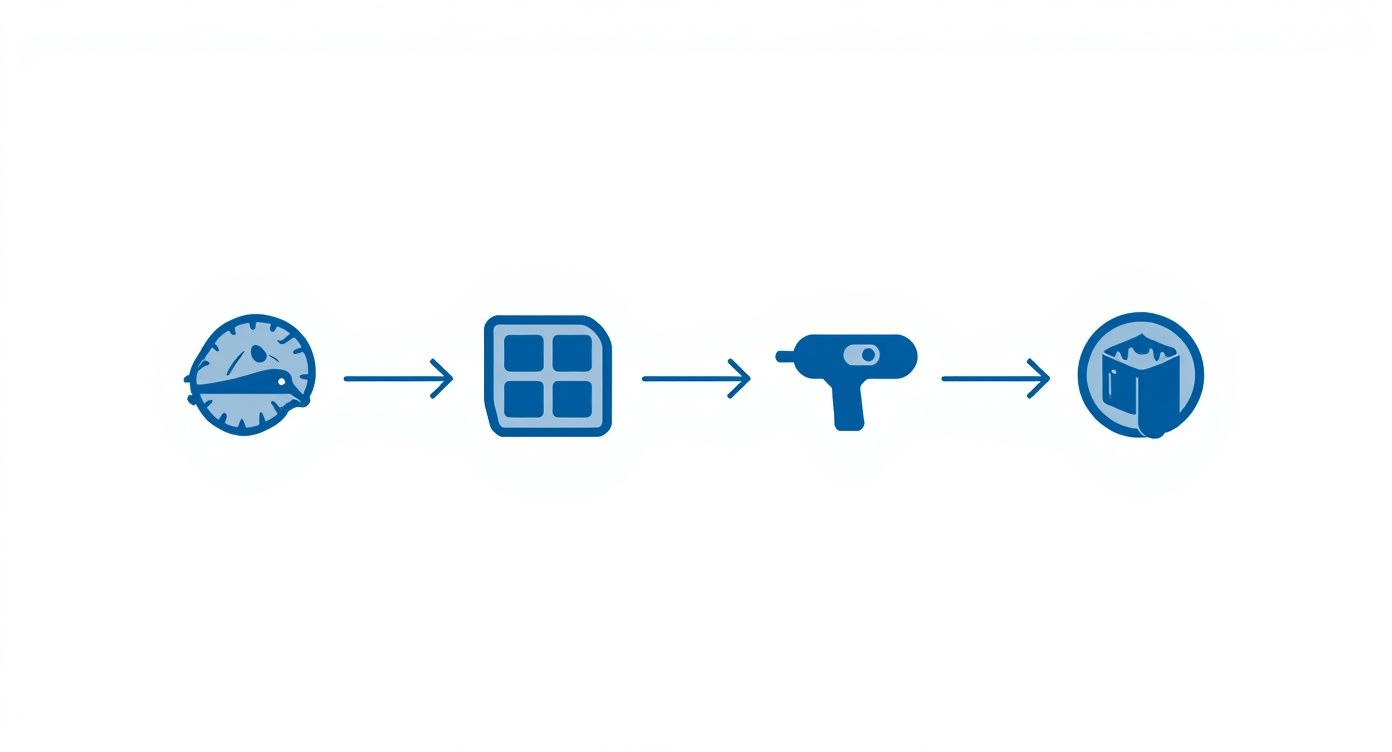

This simple diagram does a great job of showing how clean the single-step hooding process is compared to the endless winding of stretch wrap or the energy-hungry heat tunnels needed for shrink wrap.
Finalizing the Secure Seal
With the hood stretched wide, the machine’s carriage glides down, lowering it over the entire pallet load, from top to bottom. As soon as the film hits the base of the pallet, the grippers let go. Thanks to the film’s natural elasticity, it instantly snaps back, shrinking to conform tightly to the load's unique shape.
The result is a powerful combination of both vertical and horizontal containment force. This unique tension locks the products securely to the pallet, providing superior stability that significantly reduces the risk of shifting or damage during transit.
This final step creates a perfect, five-sided, waterproof seal. Your products are now safe from moisture, dust, and—if you use the right film—even UV rays. The finished pallet is ready to be moved off the line, completely secured and looking sharp. To get into the nitty-gritty of this technique, you can learn more about the benefits of stretch hood wrapping for keeping pallets stable. The entire cycle, from the first measurement to the final release, is often done in less than a minute, proving just how efficient a modern stretch hood machine can be.
What Are the Real-World Benefits of Stretch Hood Technology?
So, beyond the cool mechanics, what does a stretch hood machine actually do for your business? The answer is simple: it delivers tangible results that hit your bottom line. This isn't just about wrapping pallets more efficiently; it's about fundamentally optimizing how you package and ship products for better stability, protection, and even branding. The ripple effects are felt all the way down the supply chain.
One of the biggest wins is the unmatched load stability. Think about traditional stretch wrap—it only pulls the load horizontally. A stretch hood, on the other hand, applies force both horizontally and vertically. This two-way grip basically locks your products to the pallet, making it incredibly difficult for anything to shift, tilt, or fall over in transit.
This rock-solid stability directly cuts down on damaged goods, which means fewer customer complaints and a much more reliable delivery reputation. It’s a game-changer for securing heavy or awkwardly shaped loads, ensuring they arrive just as they left your warehouse.
Complete Protection and Killer Branding
Here’s where stretch hood really separates itself from the pack: it provides complete five-sided protection. The hood drapes over the top and seals all four sides, creating a waterproof and dust-proof cocoon around your products. If you store pallets outside or ship through unpredictable weather, this feature alone is invaluable.
But it’s not just about protection; it's also a massive opportunity for branding. You can use a crystal-clear film that gives a pristine, retail-ready view of your products, making barcode scanning a breeze. Or, you could go with custom-printed film and turn every single pallet into a moving billboard, plastering your logo across the entire supply chain.
This combination of professional presentation and robust protection is catching on. The market for the film these machines use hit USD 1.41 billion globally and is expected to climb to USD 2.05 billion in the next ten years. It's all driven by the demand for secure, tamper-evident packaging. You can dig into more details on the stretch hooder packaging film market to see the trend.
A Boost in Efficiency and a Drop in Costs
Automating your end-of-line packaging with a stretch hooder brings some serious operational gains. These machines are fast, capable of handling well over 50 loads per hour, which blows manual or semi-automatic methods out of the water. That speed frees up your team to focus on more important tasks instead of mindlessly circling a pallet.
The real magic is in the material savings. A stretch hood machine uses the exact amount of film needed for each load, stretching it to its absolute limit. This can slash your film consumption by up to 30-50% compared to traditional stretch wrapping, which is a direct win for your budget and the environment.
This efficiency comes from a few key advantages:
- No Wasted Film: The machine calculates precisely how much film is needed, unlike spiral wrapping which relies on wasteful overlapping layers.
- Reduced Labor Costs: Automation means fewer hands are needed on the packaging line, streamlining your workflow and cutting operational spending.
- Lower Energy Bills: There’s no heat tunnel involved, which is a major difference from shrink hooding. That translates to significant energy savings.
When you add it all up—superior protection, major efficiency gains, and less material waste—it's easy to see why a stretch hood machine offers a powerful and quick return on investment for any high-volume operation.
How to Choose the Right Stretch Hood Film
Your stretch hood machine is a serious piece of equipment, but it's only as good as the film you run through it. Think of it like putting the right tires on a race car—the wrong choice will kill your performance, no matter how powerful the engine is. Getting the film right is what guarantees your loads are secure, your products are protected, and your costs stay where they should be.
The first step is a hard look at your specific load. Are you wrapping neat, uniform boxes, or are you dealing with oddly shaped items and sharp corners? Each one demands a different film profile to get that perfect hold without tearing. A more rigid film might be perfect for standard boxes, but you'll need something with much higher elasticity and puncture resistance for those trickier loads.
Matching Film Composition to Your Needs
The go-to material for stretch hood film is Linear Low-Density Polyethylene (LLDPE). It’s popular for a reason—it has fantastic elasticity and strength. But the base material is just the beginning. Film manufacturers blend in different additives to dial in specific properties, creating custom-tailored films for nearly any application or environment you can think of.
A huge factor here is where your pallets are going to live. If they're destined for outdoor storage, you absolutely need a film with UV inhibitors. This additive is basically sunscreen for your products. It stops the film from breaking down and getting brittle in the sun, which can lead to a total load failure. You can't afford that.
Demand for these specialized films is climbing, especially in industries that lean heavily on outdoor storage. In the United States alone, the stretch hood films market hit USD 250.0 million and is expected to reach USD 415.1 million within a decade. That growth is coming from sectors like building and construction. You can see more on the U.S. stretch hood films market and what's driving it.
Finding the Balance of Thickness and Elasticity
Film thickness, measured in microns, is a direct line to its strength and cost. It's tempting to think thicker is always better for puncture resistance, but that's not the whole story. The real goal is to find the thinnest film possible that still delivers the containment force you need—that's the squeeze that holds your load together.
This is where elasticity becomes the hero. A great film can stretch like crazy without giving up, which lets your machine use less material for every pallet. This "down-gauging" is a massive win for both your budget and your waste-reduction goals.
Here are the key properties you need to balance:
- Elastic Recovery: This is the film’s ability to snap back after it’s stretched. It’s what creates that tight, unmovable hold on your load.
- Puncture Resistance: Non-negotiable for any load with sharp corners or weird protrusions. It prevents tears during wrapping and in transit.
- Clarity and Gloss: Don’t underestimate aesthetics. Good clarity is crucial for barcode scanning and making sure your brand looks professional.
Picking the right film comes down to a careful look at your products, your shipping environment, and your budget. For a much deeper look, check out our guide on the characteristics of premium stretch hood films. By optimizing your film, you're not just buying a roll of plastic—you're unlocking the full power of your stretch hood machine.
Evaluating Features on a Stretch Hood Machine
When you're ready to invest in a stretch hood machine, it's easy to get lost in the sea of technical specs and sales jargon. To make the right call, you have to look past the shiny brochures and focus on the features that will genuinely impact your daily operations, your flexibility, and your bottom line.
Think of it as putting together a checklist for future-proofing your productivity. The right machine should feel like a seamless part of your production line—not a constant bottleneck you have to manage. By zeroing in on a few critical areas, you can ensure your investment pays off for years to come.
Throughput and Pallet Flexibility
The first number to look at is the throughput rate, typically measured in pallets per hour (PPH). This figure has to be in sync with your production speed. A machine that can wrap 50 PPH is impressive, but it’s total overkill if your line only churns out 30 pallets an hour. On the flip side, a machine that can't keep up will create a costly backlog.
Just as important is the machine’s agility in handling different load sizes. A truly flexible stretch hood machine uses sensors to automatically measure the dimensions of every pallet that comes down the line. This allows it to adjust the film and hooding process on the fly, effortlessly switching between short, tall, wide, or narrow loads without anyone needing to push a button.
This kind of adaptability is a game-changer for operations with diverse product lines, like third-party logistics (3PL) providers or manufacturers juggling a wide range of SKUs. A machine that locks you into one size will quickly become a source of frustration and downtime.
Film Capacity and Sealing Technology
Downtime is the enemy of efficiency, and one of its most common causes is stopping to change a film roll. A machine with a high film roll capacity—meaning it can hold bigger rolls or even multiple rolls at once—slashes the number of changeovers you need to perform. That simple feature translates directly into more uptime and higher output.
Of course, the quality of the final package all comes down to the machine’s sealing and cutting tech. You need a system that delivers a clean, strong seal every single time. A weak or inconsistent seal can compromise the film’s integrity, creating weak spots that tear the moment the hood is stretched.
Key components to inspect include:
- Sealing Bar: This is what creates the strong, consistent weld at the top of the hood.
- Cutting Blade: A sharp, well-maintained blade prevents ragged edges that can easily turn into tears.
- Gripper Clamps: These need to hold the film securely without any slipping as it’s stretched over the load.
Reliable sealing is non-negotiable. It’s the key to achieving that five-sided, waterproof protection that makes stretch hooding so valuable in the first place. Looking at different models, like those detailed in this MSK Econotech stretch hooder overview, can give you a better feel for different machine designs.
Integration and System Control
Finally, a stretch hood machine has to play well with your existing setup. That means physical integration with your conveyor systems and digital integration with your Warehouse Management System (WMS). When everything communicates seamlessly, you get true end-of-line automation where pallets are tracked, managed, and wrapped without any human input.
The user interface is the last piece of the puzzle. A modern, intuitive control panel makes a world of difference for operator training, setting up recipes for different load types, and troubleshooting problems quickly.
Here’s a quick checklist to help you compare machines and focus on what truly counts.
Stretch Hood Machine Feature Checklist
| Feature | What to Look For | Why It Matters |
|---|---|---|
| Throughput (PPH) | A rate that matches or slightly exceeds your line's peak output. | Prevents bottlenecks without paying for unnecessary speed. |
| Pallet Size Flexibility | Automatic sensors that detect and adapt to various load dimensions. | Essential for handling mixed SKUs without manual adjustments. |
| Film Roll Capacity | Ability to hold large rolls or multiple film types simultaneously. | Reduces downtime from frequent film changes, boosting productivity. |
| Sealing & Cutting System | High-quality sealing bar and a sharp, durable cutting mechanism. | Ensures a strong, clean seal that prevents film tears during application. |
| Conveyor Integration | Smooth physical connection with your existing conveyor belts. | Guarantees seamless pallet flow and avoids jams or misalignments. |
| System Control (HMI) | An intuitive, easy-to-navigate touchscreen interface. | Simplifies operator training, recipe management, and diagnostics. |
| WMS/ERP Integration | Compatibility with your warehouse or enterprise management software. | Enables full automation, data tracking, and real-time monitoring. |
By carefully weighing these core features, you can choose a stretch hood machine that not only solves your current challenges but is also ready to grow with your business.
Of course. Here is the rewritten section, crafted to sound like it was written by a human expert with years of experience in the packaging industry.
Common Questions About Stretch Hood Machines
Let's be honest, jumping into a new packaging technology always brings up a few big questions. If you're thinking about a stretch hood machine, you need straight answers to know if it's the right move for your operation. We'll tackle the most common ones here.
The first point of confusion for many is how this equipment is any different from the stretch wrappers they already know.
A standard stretch wrapper just winds film around and around a pallet horizontally. It gets the job done, but it leaves the top completely exposed. A stretch hooder, on the other hand, is a whole different ballgame. It takes a single tube of film, stretches it, and pulls it down over the entire load in one smooth motion. Think of it like putting on a perfectly fitted, waterproof sock—suddenly, you’ve got five-sided protection.
That difference in protection is what really tees up the next big question.
Calculating Your Return on Investment
"So, what's the ROI on one of these machines?" It's the question on everyone's mind. While every facility is different, most businesses see a full return on their investment within 18 to 36 months.
How does that happen so fast? It comes down to a few key areas where you start saving money immediately:
- Slash Your Film Costs: Because the machine pre-stretches the film to its ideal tension, it uses way less material. We're talking 30% to 50% less film compared to an old-school wrapper.
- Reduce Labor Needs: These machines are fully automated. That means you can move the people who were manually wrapping pallets into more valuable roles.
- Stop Product Damage: The secure vertical and horizontal forces from a stretch hood lock your load in place. This dramatically cuts down on products getting damaged during shipping, saving a fortune on returns and replacements.
- Boost Your Throughput: With the ability to wrap over 50 pallets per hour, these machines crush packaging bottlenecks and keep your entire line moving.
When you add up all those savings, the initial investment starts to look like a very smart financial decision, especially for high-volume operations.
Handling Different Load Sizes
Another common worry is flexibility. "Can this machine actually handle my mix of products without a bunch of manual changeovers?" Absolutely. Modern stretch hooders are built for exactly this kind of variety.
They’re equipped with smart sensors that automatically measure the height and footprint of every single pallet that comes down the line. The machine then uses that data to dispense and apply the perfect amount of film, creating a custom-fit hood on the fly.
This is what makes them so perfect for places like 3PLs or distribution centers that deal with a huge range of SKUs. The machine just adapts from one pallet to the next without an operator having to touch a thing. That seamless adaptability is what makes it so incredibly efficient.
