Step into any high-volume warehouse or manufacturing plant, and you'll likely see an automatic stretch wrap machine holding court at the end of the packaging line. This isn't just another piece of equipment; it's the gatekeeper ensuring your products are safe, secure, and ready for the rigors of transit.
So, what is it? An automatic stretch wrap machine is a system that wraps pallet loads with stretch film entirely on its own, with zero operator assistance needed.

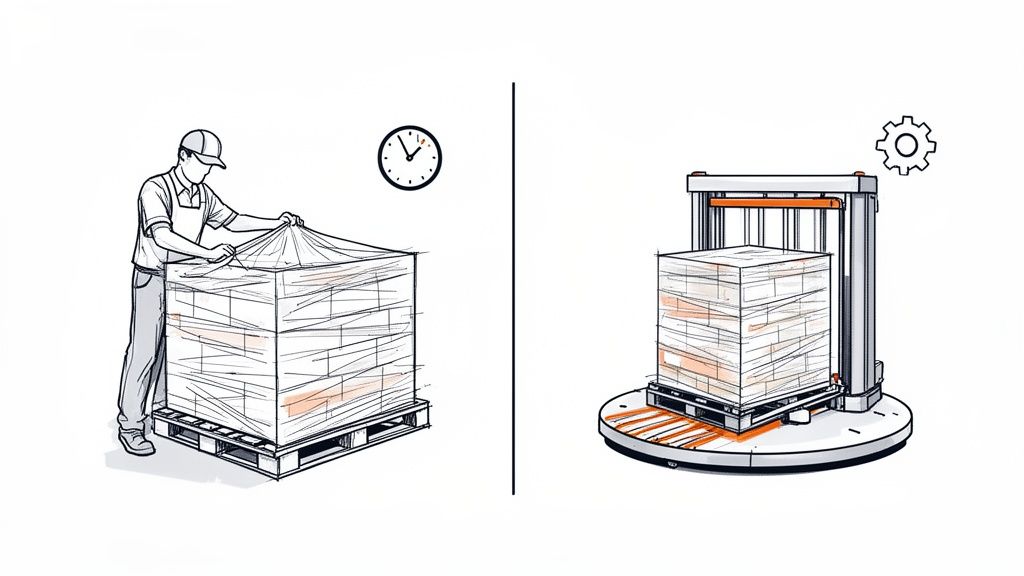

Imagine you had to hand-wrap a thousand pallets. It would be slow, back-breaking work, and no two pallets would be wrapped exactly the same. Now, think of an automatic wrapper as the industrial equivalent of hitting "print"—it produces perfectly consistent, secure results, time and time again. For any operation handling serious volume, it's a non-negotiable upgrade.
From Manual Labor to Automated Efficiency
Before we get into the nuts and bolts, let's talk about the why. For years, the standard was a worker walking endless circles around a pallet, dizzy and straining to pull the film tight. It's a recipe for inconsistency. The first pallet of the day might be wrapped perfectly, but the last one? Not so much. That variability is exactly what leads to shifted loads, damaged products, and costly returns.
An automatic stretch wrap machine takes that unpredictability completely out of the equation. Its sole job is to apply film with calculated precision—the right tension, the right number of wraps, in the right place, every single time. This is about more than just speed; it's about creating a dependable, protective cocoon for your goods.
The Core Purpose in Modern Supply Chains
These machines do a lot more than just spin film around a pallet. They are a critical control point in the modern supply chain, directly influencing everything from safety to your bottom line.
- Protecting Products: They create a unified, stable load that prevents boxes from shifting, crushing, or falling during transit.
- Upholding Brand Reputation: When your products arrive intact, it reinforces your customer's trust in your brand. Fewer damages mean happier partners.
- Improving Worker Safety: Taking people out of the "dizzying circle" of manual wrapping eliminates a major cause of repetitive strain and back injuries.
The explosion of e-commerce and a challenging labor market have pushed this technology from a "nice-to-have" to a "must-have." The market for these machines was valued at around US$758.1 million in 2018 and is on track to hit US$1.356 billion by 2026—a testament to how essential they’ve become.
Think of an automatic stretch wrapper as an investment in consistency. It’s a core piece of modern industrial automation that pays for itself by cutting product loss, boosting labor efficiency, and protecting your reputation one perfectly wrapped pallet at a time.
Ultimately, these machines form the backbone of an efficient end-of-line packaging process. To see how automation is making an impact across different sectors, you can explore a variety of industrial automation solutions. Getting a handle on this technology is the first step toward truly optimizing your warehouse operations.
Comparing the Main Types of Automatic Stretch Wrappers
Picking the right automatic stretch wrap machine is a lot like choosing a vehicle for a specific job—you wouldn't show up with a sports car to haul a load of gravel. The machine you need depends entirely on what you're wrapping, how fast you need to get it done, and just how stable (or unstable) your pallets are.
You’ll generally run into three main designs: turntable, rotary arm, and orbital wrappers. Each one is built to solve a different kind of packaging puzzle, and getting to know them is the first step toward a smart investment. Let's dig into how they work and where each one truly excels.
The Reliable Workhorse: Turntable Wrappers
Walk into almost any warehouse or distribution center, and you'll likely see a turntable wrapper. They're the dependable workhorses of the industry, perfect for handling stable, fairly uniform pallet loads day in and day out.
The process is simple and effective. A conveyor slides the pallet onto a rotating platform—the turntable. As it spins, a film carriage travels up and down a mast, applying stretch film around the load. This method is a fantastic fit for sturdy, boxed products that won't get knocked off balance by centrifugal force.
A major plus for turntable models is their relatively small footprint and lower upfront cost compared to other automatic systems. This makes them a go-to choice for operations just making the leap into full automation.
The Unstable Load Specialist: Rotary Arm Wrappers
So, what do you do with a pallet that's incredibly heavy, exceptionally tall, or dangerously unstable? Spinning it on a turntable is just asking for a mess. This is exactly where a rotary arm wrapper becomes your most valuable player.
Instead of spinning the pallet, a rotary arm machine keeps the load perfectly still. A large overhead arm, which holds the film carriage, does all the moving, rotating around the pallet to apply the film. This clever design gets rid of all the forces that could otherwise topple a light, tall, or awkwardly balanced load.
It's no surprise that rotary arm systems are a favorite in industries like beverage, dairy, and packaged foods. In fact, it's projected that rotary arm wrappers will account for about 49.6% of global stretch wrapper revenue, thanks to their necessity in high-speed lines handling fragile goods.
The Horizontal Packaging Expert: Orbital Wrappers
Finally, we have the orbital wrapper, a specialist machine built for a very unique challenge: wrapping long, awkward items that would never fit on a standard pallet. We're talking about products like lumber, piping, rolls of carpet, doors, or even assembled furniture.
Often called a "ringer," an orbital wrapper works by passing the product horizontally through a large, rotating ring that dispenses the film. This motion creates a tight, protective cocoon around the entire length of the item, securing it completely for shipment.
While they aren't used for standard pallets, this type of automatic stretch wrap machine is an indispensable tool for manufacturers in building materials, textiles, and furniture.
Automatic Stretch Wrap Machine Comparison
To help you visualize the differences, here’s a quick side-by-side look at the three main machine types.
| Machine Type | Best For | Typical Speed (Pallets/Hour) | Footprint | Key Advantage |
|---|---|---|---|---|
| Turntable | Stable, uniform, and moderately weighted pallet loads. | 30 – 70 | Compact | Cost-effective and efficient for standard applications. |
| Rotary Arm | Very heavy, tall, light, or unstable loads. | 40 – 100+ | Large | Wraps the load while it remains completely stationary. |
| Orbital | Long, horizontal items like pipes, lumber, or doors. | Varies by product length | Long | Secures non-palletized, oversized products. |
As you can see, each machine offers a distinct solution engineered for specific products and operational demands.
For a deeper look into related packaging equipment, check out our guide on selecting a shrink wrap machine for pallets.
Essential Features That Drive Performance and Savings
Beyond the basic design—turntable, rotary arm, or inline—the specific features packed into an automatic stretch wrap machine are what really move the needle on your bottom line. These aren't just bells and whistles; they're the engines that power efficiency, slash waste, and ultimately pay for the machine itself.
It's a lot like comparing two trucks. Both have an engine and four wheels, but one might have a high-efficiency engine and advanced driver-assist systems that save fuel and prevent accidents. It's the same with stretch wrappers—a few key technologies can elevate a basic machine into a high-performance asset for your operation.
The Economic Engine: The Film Pre-Stretch Carriage
If one feature alone justifies the investment in a modern wrapper, it’s the film pre-stretch carriage. This component is the economic heart of the machine. It works by pulling the film between two rollers before it ever touches the pallet, stretching it out by 250% or even more.
This does two incredible things at once. First, it makes the film stronger by orienting the polymer chains, boosting its tensile strength for better load containment. Second, and just as important, it dramatically cuts down on how much film you use. By turning one foot of film into three-and-a-half feet, you can slash your material costs by 50% to 70%.
Think of the pre-stretch carriage as a force multiplier for your packaging budget. It unlocks the true potential of your stretch film, giving you maximum load security with the absolute minimum amount of material. Those savings add up fast.
True Automation: The Film Attach, Cut, and Wipe System
So what makes an automatic stretch wrapper truly "automatic"? The magic lies in its ability to start and finish a wrap cycle with zero human intervention. This is where the film attach, cut, and wipe system comes in. It’s the feature that delivers genuine, operator-free performance.
Here’s a quick look at how this hands-free sequence unfolds:
- Film Attach: As the pallet moves into position, a clamp or "gripper" grabs the film's leading edge and holds it against the load to start the cycle.
- Film Cut: Once the last wrap is complete, a hot wire or a small blade cleanly severs the film from the roll.
- Film Wipe: A brush or padded arm then presses the film tail smoothly against the load, making sure it sticks and won’t unravel in transit.
This seamless process frees up your operator to handle more valuable tasks, like staging the next pallet or finishing up paperwork, instead of standing around watching a machine work.

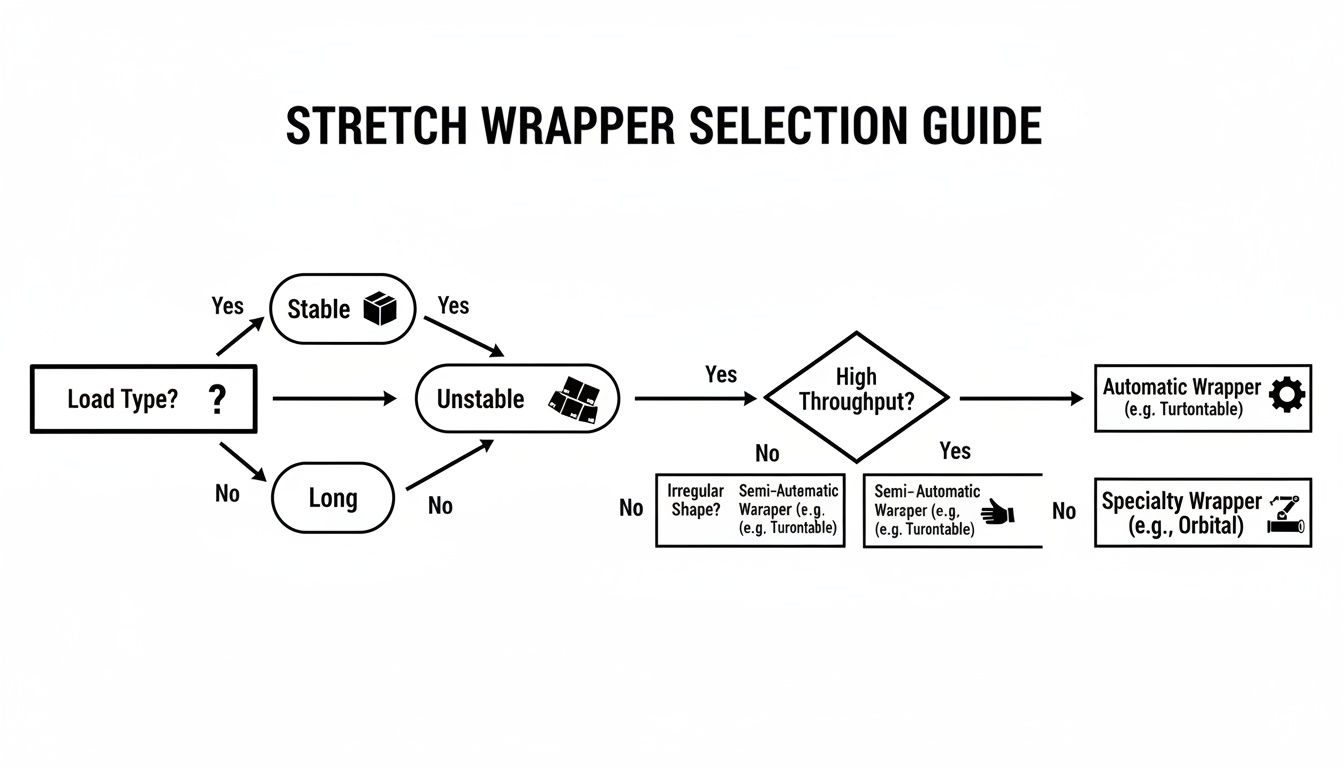

This simple decision tree can help you visualize which type of wrapper best fits your specific load characteristics.
As the chart shows, things like load stability and shape are the first questions you need to answer when choosing between a turntable, rotary arm, or orbital system.
Critical Specifications and Safety Mechanisms
Beyond those two core systems, a few other specs need your full attention. These are the details that define the machine’s real-world capacity, ease of use, and overall safety.
The biggest win with automation is the massive jump in productivity. A fully automatic line with integrated conveyors can wrap anywhere from 60 to 120 pallets per hour. That's a world away from the 10–25 pallets a semi-automatic unit can handle. Over two shifts, a single machine can wrap over 1,000 pallets, often replacing several manual wrapping stations. You can get more insights on how automation boosts throughput from the experts at 4dock.com.
Key specs to look for include:
- Load Capacity: The absolute maximum weight the machine can handle. This is a critical structural limit, especially for turntable models.
- Max Wrap Height: You need to make sure the machine’s mast is tall enough to accommodate your highest pallet loads.
- HMI Control Panel: A good Human-Machine Interface (HMI) is a game-changer. Look for one that's intuitive and allows you to pre-program different wrap "recipes" for various loads, which drastically cuts down on setup and training time.
Finally, you can't afford to overlook safety. Modern automatic wrappers are powerful machines, and protecting your team is paramount. Features like light curtains (which instantly shut the machine down if someone breaks the beam) and physical safety fencing aren't optional—they are non-negotiable requirements for any responsible operation.
How to Choose the Right Stretch Film
An automatic stretch wrap machine is a powerful piece of equipment, but it's only as good as the film you run through it. Think of it like a high-performance race car—fueling it with low-grade gas is just asking for trouble. You'll get sputtering performance, risk damage, and waste a ton of money.
The partnership between your machine and your film is everything. A top-of-the-line wrapper with a powerful pre-stretch carriage can’t deliver on its promised savings if the film isn't engineered to handle that stress. Let's walk through how to match the right film to your machine and your products, making sure every pallet you send out is secure and cost-effective.
Decoding Key Film Properties
When you start looking at stretch film, a few core specs will tell you almost everything you need to know. Getting a handle on these terms is the first step to making a smart choice.
- Gauge (Thickness): This is the classic way to measure film thickness. But while a higher gauge used to always mean more strength, modern films are a different breed. Today’s engineered films can often deliver better performance at a lower gauge than a thicker, less advanced alternative.
- Puncture Resistance: This is all about how well the film stands up to sharp corners on a pallet, like the edge of a box or a rough spot on a wooden stringer. High puncture resistance is absolutely critical for preventing tears that can compromise the entire wrap.
- Pre-Stretch Percentage: For an automatic stretch wrap machine, this is arguably the most important spec on the box. It tells you the maximum amount the film can be stretched before it’s applied to the load. A film rated for 250% pre-stretch means every single foot of film can be safely stretched to three and a half feet, unlocking huge material savings.
Choosing the right film isn't just about covering a pallet; it's an exercise in applied physics. You're matching the film’s engineered properties—its ability to stretch, cling, and resist punctures—to the real-world forces your load will face in transit.
Matching Film to Your Application
Beyond the basic specs, your specific product and industry will demand more specialized film. A one-size-fits-all approach almost never works. The unique challenges of your load, from its shape to what’s inside the boxes, should be your guide.
Take the food and beverage industry, for instance. Loads of fresh produce might need a breathable or vented stretch film to allow for air circulation and prevent spoilage. On the flip side, products sensitive to condensation could benefit from anti-fog films that keep everything clear and protected. You can learn more about how different types of pallet wrap stretch film are engineered for all sorts of industrial needs.
High-Performance vs. Standard Films
The real magic happens when you pair your machine with a high-performance film designed for high pre-stretch percentages. These advanced films are made with multiple layers of specialized polymers that give them incredible strength and elasticity.
Sure, they might have a slightly higher cost per roll, but their ability to be stretched so much further means you use significantly less film on every pallet. The bottom line is a lower total cost per wrapped load and a much more secure package. If you try to run a standard-grade film through a high-performance machine, it will just tear, causing downtime and wasting material. Investing in the correct film isn't just a good idea—it's essential for optimizing your entire packaging operation.
Calculating Your ROI and Building the Business Case
Bringing an automatic stretch wrap machine into your facility is more than just an operational upgrade—it’s a serious financial move. When you're looking at the upfront cost, it can feel like a big leap, especially when moving from hand wrapping or a semi-automatic system.
But here’s the thing: when you actually run the numbers, these machines often pay for themselves way faster than you’d think.
To get buy-in from the decision-makers, you need to build a business case that goes beyond the price tag and zeroes in on the return on investment (ROI). This isn't about vague promises; it's about calculating the hard-dollar savings the machine will deliver. Understanding how to calculate return on investment is the first step in showing just how smart this purchase really is.
The Four Pillars of Stretch Wrapper ROI
Your entire business case will rest on four key areas where you’ll see immediate and substantial savings. Think of these as the pillars holding up your argument. Each one represents a direct cost you can cut or an efficiency you can gain, all adding up to a surprisingly quick payback.
-
Redeployed Labor Costs: This is the big one, and the savings start on day one. Figure out how many hours your team spends walking in circles around pallets every day. Multiply that by your fully burdened labor rate. With an automatic wrapper, that time is instantly freed up for tasks that actually add value to your operation.
-
Drastic Material Savings: Remember that pre-stretch carriage? It’s not just a fancy feature; it’s a money-saving engine. By stretching the film before it's applied, you can slash your film consumption by 50% or more. This isn’t just trimming the budget; it's chopping your material spend in half. You can estimate this by comparing your current annual film costs to what you'd spend with a 250% pre-stretch system.
-
Reduced Product Damage: Let’s be honest, hand wrapping is inconsistent. That inconsistency leads to shifted loads, crushed boxes, and damaged goods during transit. An automatic machine applies a secure, uniform wrap every single time, which means fewer customer claims, fewer returns, and less money thrown away on unsellable products.
-
Increased Throughput: A human can wrap a few pallets an hour, at best. An automatic wrapper can churn through 60-120 pallets per hour without breaking a sweat. This isn't just about speed; it's about capacity. You can ship more product out the door, faster, without adding headcount. That directly translates to increased revenue potential.
Building Your Business Case Worksheet
Alright, let's put this into practice with your own numbers. A simple worksheet can take these concepts and turn them into a powerful, data-driven argument that speaks the language of your finance team.
Your goal is to frame the automatic stretch wrapper not as an expense, but as a strategic investment in profitability. By showing concrete savings in labor, materials, and damage, you make the value proposition undeniable.
Here’s a template to get you started. Just plug in your facility's numbers to estimate the annual savings and see for yourself.
Sample ROI Calculation Worksheet
This simple table helps you map out the real-world financial impact of adding an automatic wrapper. Fill in your own estimates to see the total potential savings.
| Savings Category | Calculation/Formula | Your Estimated Annual Savings |
|---|---|---|
| Labor Savings | (Hours per Day Wrapping) x (Hourly Labor Rate) x (Work Days per Year) | $ ____________ |
| Film Savings | (Current Annual Film Cost) x (Projected Savings Percentage, e.g., 50%) | $ ____________ |
| Damage Reduction | (Annual Cost of Damaged Goods) x (Estimated Reduction %, e.g., 75%) | $ ____________ |
| Increased Throughput | (Value of Additional Pallets Shipped per Day) x (Work Days per Year) | $ ____________ |
| Total Estimated Savings | Sum of all categories above. | $ ____________ |
Once you fill this out, you’ll have a clear financial snapshot. That final number isn't just a projection; it's a powerful justification that shows exactly how this machine will start contributing to your company's bottom line from the moment it's installed.
Taking Care of Your Investment: Installation and Maintenance
Getting the most out of your automatic stretch wrap machine starts the moment it hits your floor. Think of it less as just plugging in a new tool and more as integrating the heart of your packaging line. A smart installation and a proactive maintenance plan are what separates a high-performing asset from a constant headache.
This isn't just about flipping a switch. It’s about setting the machine up for peak performance from day one and avoiding the common slip-ups that lead to early downtime and frustration.
Setting the Stage for a Smooth Installation
A successful launch begins long before the delivery truck arrives. Proper site prep is a non-negotiable for both safety and performance. You absolutely need a dedicated, level concrete surface that can handle the machine’s weight, which is especially critical for those heavy-duty turntable models.
Look beyond the foundation and think about workflow. Is there enough room for forklifts or pallet jacks to get in and out without causing a traffic jam? Finally, double-check your utilities against the machine’s spec sheet.
- Power Requirements: Make sure you have the right voltage and a dedicated circuit ready to go. Trying to run on improper power is one of the quickest ways to cause performance problems.
- Compressed Air: Many automatic wrappers rely on pneumatics for things like film clamping and cutting. You'll need to confirm the required PSI and ensure the air supply is clean and dry.
Building a Proactive Maintenance Routine
Once it's up and running, your automatic stretch wrap machine demands regular attention. You wouldn't drive your car for years without changing the oil, and the same logic applies here. A preventive maintenance schedule is your roadmap to maximizing uptime and getting every last bit of value out of your equipment.
A well-maintained machine is a reliable machine. Proactive care stops small issues from snowballing into expensive, line-stopping failures, protecting your productivity and ensuring your loads are always secure.
This routine should be a mix of simple daily checks by the operator and more involved weekly or monthly tasks for your maintenance crew. For any operation serious about stretch wrapping pallets properly, this consistency is key.
Your Go-To Maintenance Checklist
A tiered checklist makes it easy for your whole team to take ownership of the machine’s health. It builds a culture of care and helps you spot trouble early, which drastically cuts down on the kind of unplanned downtime that can throw your entire shipping schedule into chaos.
Daily Tasks (For the Operator):
- Check Film Rollers: Look for any gunk, residue, or nicks that could mess with the film path.
- Wipe Down Sensors: Keep photo-eyes and other sensors clean so they can accurately detect loads.
- Clear the Area: Sweep away any stray wood chips, plastic, or junk from the turntable or conveyor.
Weekly Tasks (For the Maintenance Team):
- Lubricate Moving Parts: Hit all the specified grease points on chains, bearings, and other components.
- Inspect Belts and Chains: Check for proper tension and look for any signs of wear and tear.
- Test Safety Features: Make sure the E-stops, light curtains, and safety gates are all working as they should.
Got Questions? We've Got Answers
Digging into the details before you invest in a major piece of equipment always brings up a few last-minute questions. To help you connect the final dots, here are some straight answers to the most common things we hear from managers thinking about an automatic stretch wrap machine.
How Much Space Do I Really Need for One of These?
The footprint of these machines can differ quite a bit based on the model and your line setup. For a fairly standard inline turntable machine with its own conveyors, you should probably earmark an area around 15 by 20 feet.
Keep in mind, a rotary arm machine needs a much larger safety zone for the arm to swing around without any obstructions. The best advice? Always pore over the manufacturer's technical drawings. And don't forget to account for a safe walking path for your team and clear lanes for forklift traffic.
Can an Automatic Machine Handle Different Pallet Sizes?
Absolutely. Modern automatic wrappers are built for variety. Most are designed to take on a whole range of load sizes and heights without anyone having to fiddle with settings in between.
They do this with photo-eye sensors that instantly detect how tall each pallet is as it rolls into the wrap zone. That little bit of data lets the machine adjust the wrap cycle on the fly, making sure every single load—short or tall—gets complete and consistent coverage.
The real difference between automatic and semi-automatic comes down to one thing: how much a person has to be involved. A semi-automatic wrapper needs someone to start and finish the job—attaching the film and then cutting it. A truly automatic machine does it all, creating a completely hands-off, continuous flow.
What's the Difference Between Automatic and Semi-Automatic, Anyway?
It all boils down to the level of human involvement. A semi-automatic machine still needs an operator to handle the key steps. That person has to walk up, physically attach the film to the pallet, push a button to start the cycle, and then cut the film tail loose when it’s all done.
A fully automatic stretch wrap machine, on the other hand, is built to be a seamless part of your conveyor line. It handles every single task—attaching the film, wrapping the load, cutting the tail, and wiping it down—with zero help from an operator.
How Hard Is It to Train Our Team on a New Machine?
You’d be surprised how easy it is, especially with modern control systems. Most new machines come with an intuitive Human-Machine Interface (HMI)—which is just a fancy way of saying a touchscreen panel. This makes getting the hang of it pretty quick.
You can teach the basics, like starting or stopping a cycle and picking a pre-set wrap recipe, in just a couple of hours. The most critical parts of the training will be on safety protocols, how to clear a film jam without getting hurt, and the simple daily checks that keep the machine running like a top.
